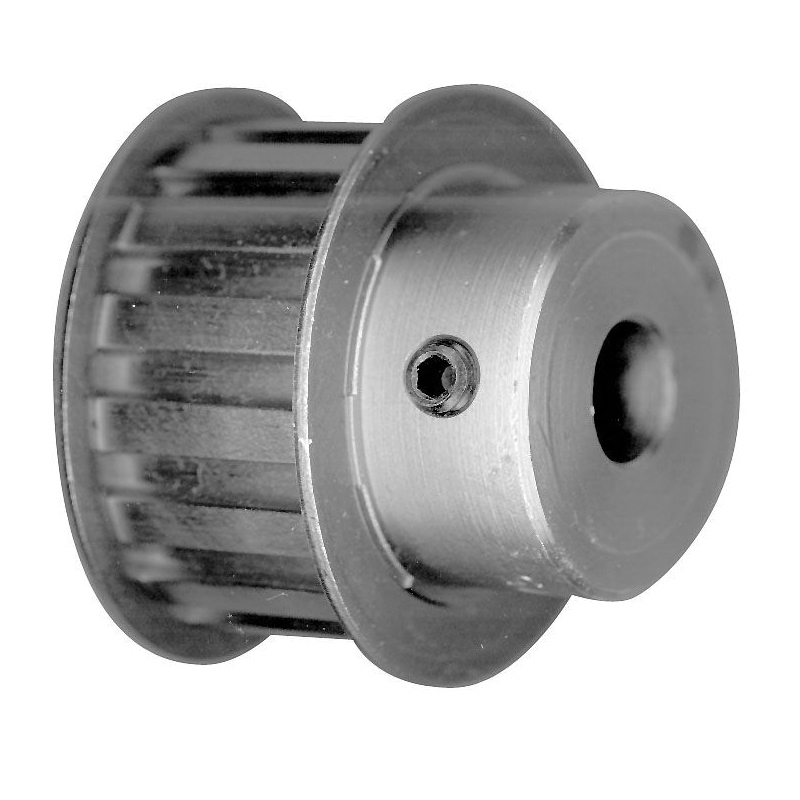

Bando Synchro-Link® P34-5M-15 Type 6F High Torque Flanged Timing Belt Pulley, 1/2 in MPB Bore, 2.085 in OD, 2.13 in Dia Pitch, 0.84 in W Face
Bando Synchro-Link® Timing Belt Pulleys are manufactured to exacting tolerances to assure total drive system compatibility. They are available in a complete range of sizes, types, configurations and materials to contribute to the efficiency, economy and performance of your drive.
-
BrandBando
-
UPC649717912291
-
Manufacturer Part NumberP34-5M-15
-
CountryUSA
-
Face Width0.84 in
-
Pitch5 mm
-
Pitch Diameter2.13 in
-
Flange Diameter2.295 in
-
TypeType 6F High Torque Flanged
-
Hub Diameter1-11/16 in
-
Hub Projection1/2 in
-
Outside Diameter2.085 in
-
Bore Diameter1/2 in
-
Bore TypeMPB
-
Overall Length1-11/32 in
-
Suitable For Use WithSynchro-Link® 5M Series 15 mm W 34 Teeth Timing Belt
- For optimum performance, combine Bando Synchro-Link® timing belts and timing belt bushings/pulleys
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 year
-
