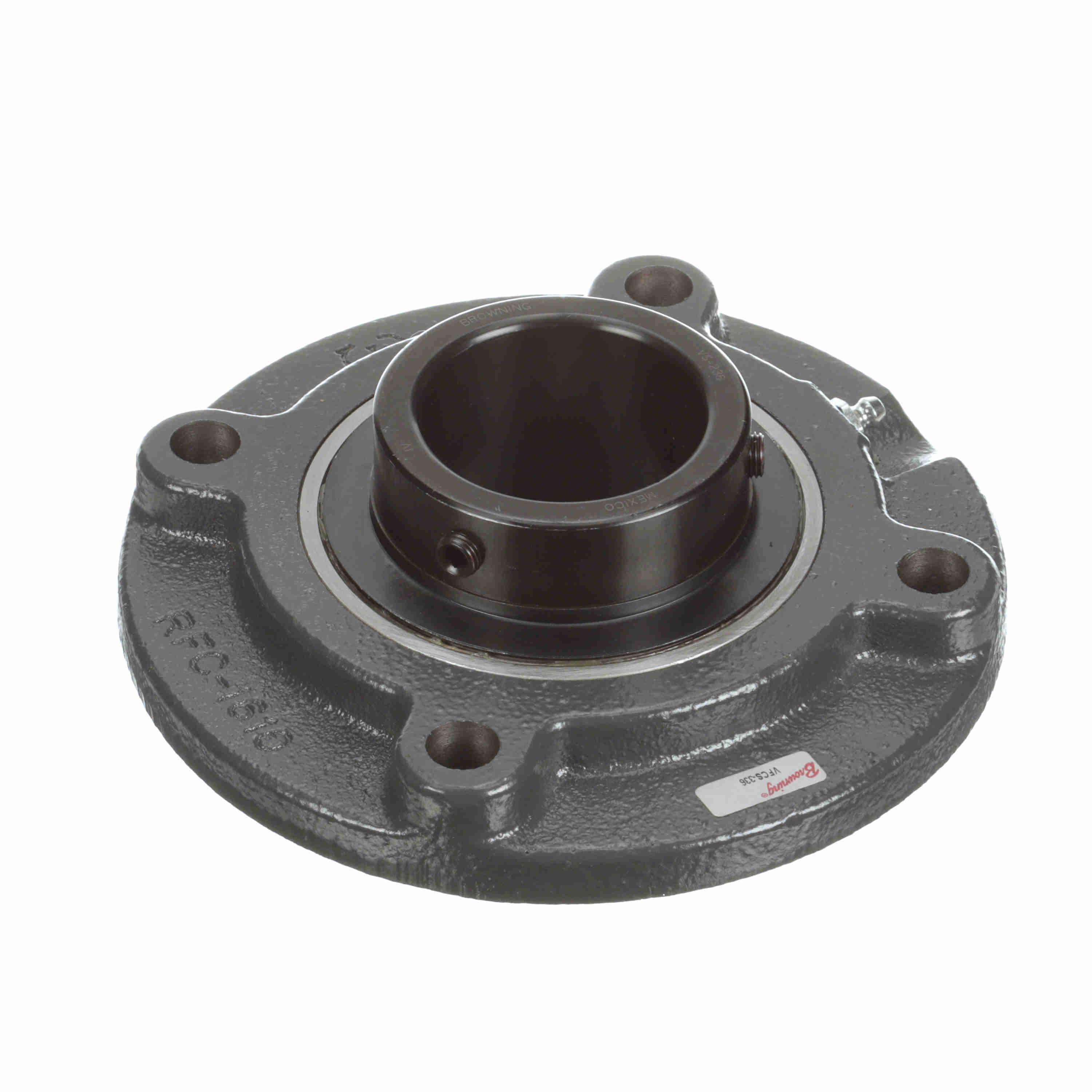

Browning 2-1/4" 4-BOLT CARTRIDE FLANGE UNIT BRW VFCS-336
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289520473
-
Manufacturer Part Number765000
-
CountryUSA
-
Load Capacity11789 lb Dynamic/8150 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating200 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt
-
Maximum Speed2500 rpm
-
TypeNon-Expansion Medium Duty Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesVFCS 300
-
Bearing MaterialSteel
-
Bolt Circle Diameter6 in
-
Bore Diameter2-1/4 in
-
Overall Depth2-7/16 in
-
Overall Length/Diameter7-1/8 in
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron base
- Zone hardened inner race
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- Nylon retainer
- 52100 black oxide coated insert
-
Alternative Part NumberVFCS-336
-
UNSPSC31171501
-
Warranty1 Year
-
