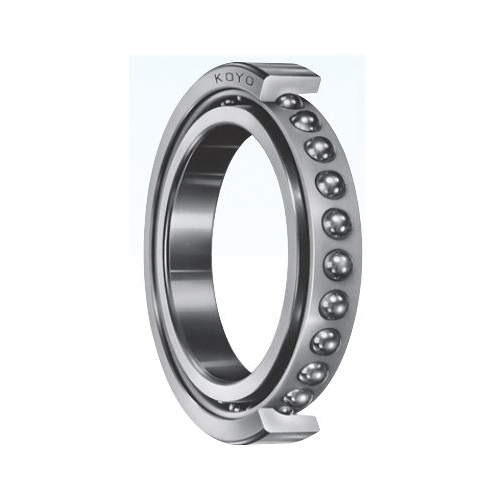

Koyo Bearings THRUST BALL BEARINGS KOY 7204-B
Due to having contact angles, the Angular Contact Ball Bearing is suitable for applications demanding high accuracy and high rotational speed and is capable of withstanding combined radial and axial loads.
-
BrandKoyo
-
UPC605790091728
-
Manufacturer Part Number7204B
-
CountryUSA
-
Load Capacity17.6 kN Dynamic/8.4 kN Static
-
Cage MaterialSteel
-
Temperature Rating-54 to 121 deg C
-
Maximum Speed13000 rpm Grease/17000 rpm Oil
-
Closure TypeOpen
-
TypeCaged Cylindrical Bore
-
Width14 mm
-
Series72B
-
Number of Rows1
-
Bearing MaterialHigh Carbon Chrome Steel
-
Outside Diameter47 mm
-
Bore Diameter20 mm
- Single row angular contact ball bearings and matched pair angular contact ball bearings
- Best used for normal radial and high axial load applications
- Made from premium high carbon chrome Japanese steel
-
UNSPSC31171531
-
