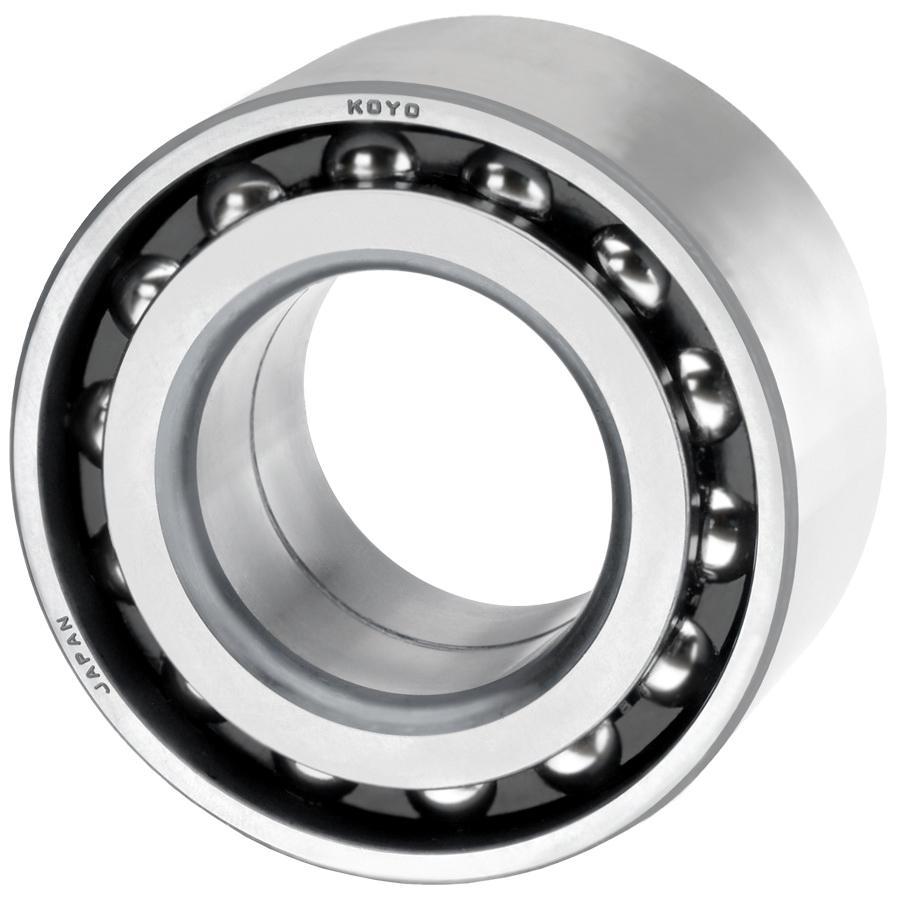

Koyo Bearing DOUBLE ROW OPEN FACE BALL BEARINGS KOY 5310
Angular contact ball bearings are suitable for applications which require high accuracy and good high-speed performance. This type of bearing is designed to carry a combined load.
-
BrandKoyo
-
UPC605790369421
-
Manufacturer Part Number5310
-
CountryUSA
-
Load Capacity111 kN Dynamic/67 kN Static
-
Cage MaterialPressed Steel
-
Temperature Rating-30 to 110 deg C
-
Maximum Speed3600 rpm Grease/4800 rpm Oil
-
Closure TypeOpen
-
TypeCaged Cylindrical Bore Medium
-
Width44.4 mm
-
Series53 Series
-
Number of Rows2
-
Bearing MaterialSteel
-
Outside Diameter110 mm
-
Bore Diameter50 mm
- Double-row angular contact ball bearings consist of two single-row angular contact ball bearings matched back-to-back with inner and outer rings integrated
- Without filling slot
- 24 deg contact angle
- Available with seals (2RS), shields (ZZ) and/or snap ring (NR)
- Made from premium high carbon, high chromium Japanese steel
-
Alternative Part Number5310CD3
-
UNSPSC31171531
-
Standards/ApprovalsABEC1 Class P0
-
