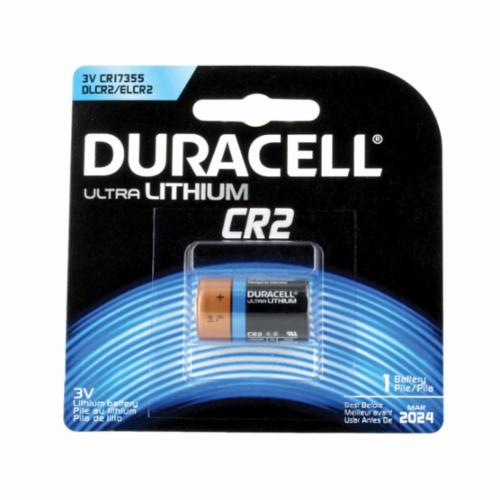

Duracell® DLCR2BPK Cylindrical Battery, Lithium-Manganese Dioxide, 3 VDC Nominal, 750 mAh Nominal, CR2, 3.2 to 3.3 VDC Charge
Duracell® DLCR2BPK Cylindrical Battery, Lithium-Manganese Dioxide, 3 VDC Nominal, 750 mAh Nominal, CR2, 3.2 to 3.3 VDC Charge
-
BrandDuracell®
-
UPC041333005102
-
Manufacturer Part NumberDLCR2BPK
-
CountryUSA
-
Terminal TypeFlat
-
Maximum Discharge Current1000 mA
-
Charge Voltage3.2 to 3.3 VDC
-
Chemical SystemLithium-Manganese Dioxide
-
Nominal Capacity750 mAh
-
Nominal Voltage3 VDC
-
Shelf Life10 years
-
Battery SizeCR2
-
Dimensions15.6 mm Dia x 27 mm H
-
Discharge Cut-Off Voltage2.3 VDC
-
Internal Impedance0.3 Ohm
-
Life Hour1/2 hr
- 5.168 cu-cm volume
- -20 to 75 deg C operating temperature
- 2.3 V at 1000 mA cut-off voltage
- 1000 mA at 2.3 VDC discharge current
| Cross-Reference Number |
|---|
| 842575 |
-
UNSPSC26111711
-
Standards/ApprovalsANSI/NEDA 5046LC
-
Specification Sheet
