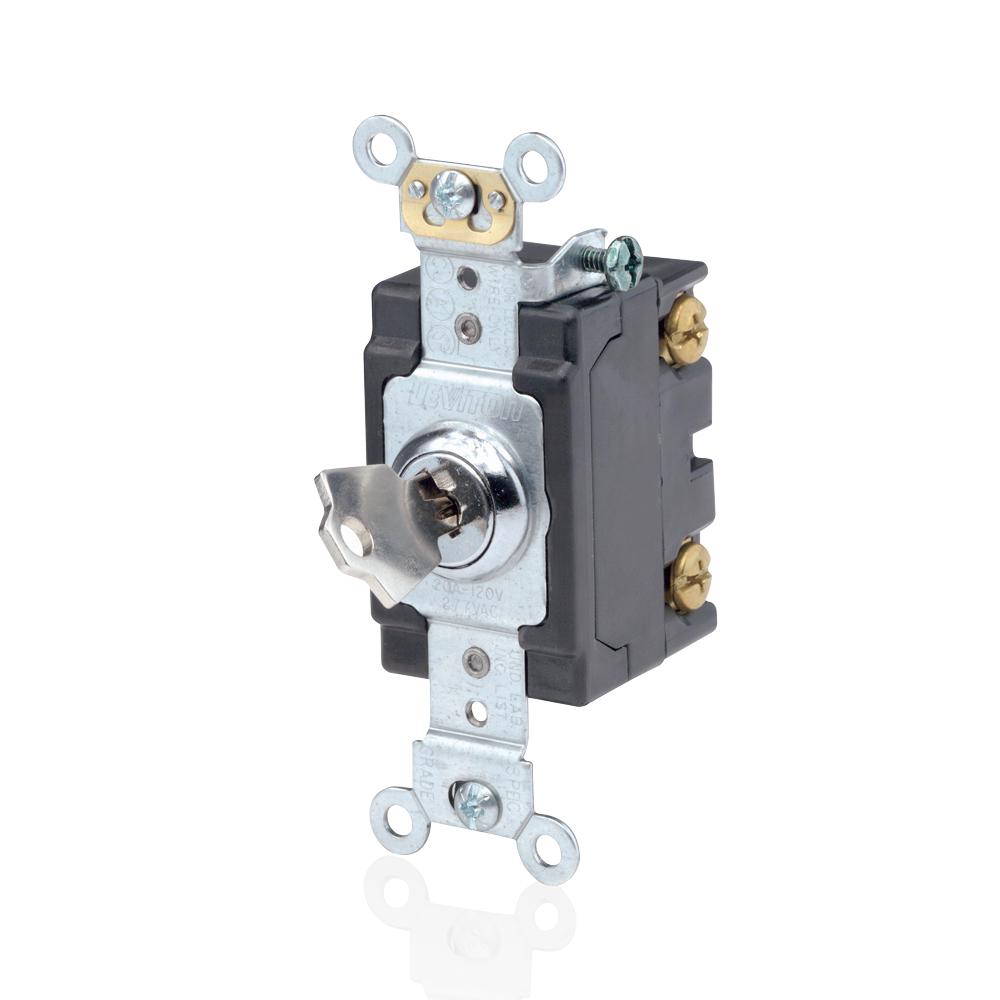

LEVITON 20-A KEY LOCKING SWITCHES LEV 12212-KL
Leviton® extra heavy duty AC key locking switches are the perfect choice for public use areas in schools/universities and pediatric facilities. Operable only with the mating key, it prevents unauthorized personnel from turning the switch ON or OFF.
-
BrandLeviton®
-
UPC078477361986
-
Manufacturer Part Number1221-2KL
-
CountryUSA
-
Lock TypeKeyed
-
MaterialThermoplastic
-
Power Rating1 hp, 2 hp
-
ColorNickel/Chrome
-
TypeExtra Heavy Duty AC Quiet Self-Grounding
-
ConnectionBack/Side Wired
-
MountingSurface
-
Contact ConfigurationSP
-
ActuatorKey/Toggle
-
Voltage Rating120/277 V AC
-
Amperage Rating20 A
-
Number of Poles1
-
Dimensions46 in H x 1.31 in W x 2.87 in D
-
Environmental Conditions-40 to 60 deg C
- Heavy duty key operated locking mechanism for maximum tamper-proof operation in schools, institutions, public housing, trailer parks, loading docks, freight yards and other areas
- Chrome lock dome with 2 keys provided per switch
- Back and side wired terminals accept up to 14 to 10 AWG copper or copper clad wire
- Large, combination head terminal screws with external clamps
- Triple combination mounting screws for fast, easy installation
- Heavy gauge rust resistant mounting strap with steel grounding screw and self-grounding clip (self-grounding when used in a properly grounded metal wallbox)
- Key removable in ON or OFF positions
- 1 hp at 120 VAC, 2 hp at 240 to 277 VAC
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 3AY58 |
-
Alternative Part Number9926801
-
UNSPSC39122211
-
IDEA Index ID9926801
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 111|CSA 152105|Federal Spec WS896E|UL E7458|UL 20|UL94 V-2 Flammability Rated
-
Warranty10 years Limited
-
