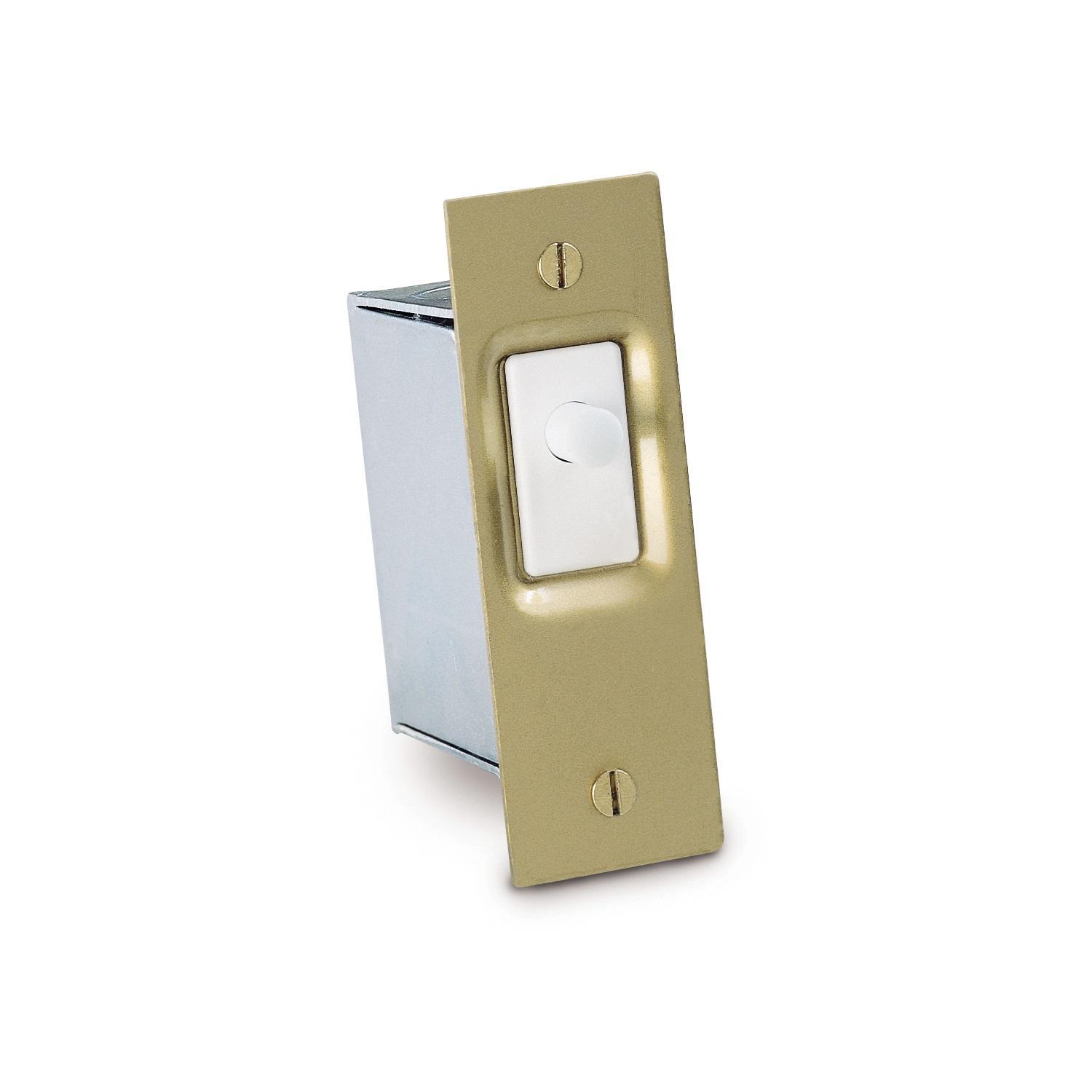

Gardner Bender GSW-SK Door Switch Kit, 125/277 V AC, 10/16 A, 1/2 hp, SPST Contact, Wire Lead Terminal
The 10 A pushbutton door switch features normally on-momentary contact. The switch includes a metal box, cover plate and mounting hardware for installation within a doorjamb with a 1-1/4 in wide x 2-3/4 in high x 2 in deep mounting hole. The single-pole, single throw circuitry automatically operates lights when door is opened.
-
BrandGardner Bender
-
UPC032076897475
-
Manufacturer Part NumberGSW-SK
-
CountryUSA
-
Temperature Rating-20 to 65 deg C
-
Terminal TypeWire Lead
-
ColorTan
-
Contact ConfigurationSPST
-
ActuatorPush Button
-
Voltage Rating125/277 V AC
-
Amperage Rating10/16 A
-
Horsepower1/2 hp
-
Dimensions3.882 in W x 1.256 in H
- Normally-on/momentary-off, SPST circuitry turns lights on when the door opens
- Install in a doorjamb with a 1-1/4 in wide x 2-3/4 in high x 2 in deep mounting hole
- 16 A at 125 VAC, 10 A at 277 VAC amperage rating
| Cross-Reference Number |
|---|
| 553395 |
-
Alternative Part Number16793377
-
UNSPSC39122216
-
IDEA Index ID16793377
-
Standards/ApprovalsCSA Certified|cULus Listed|UL Listed
-
Specification Sheet
