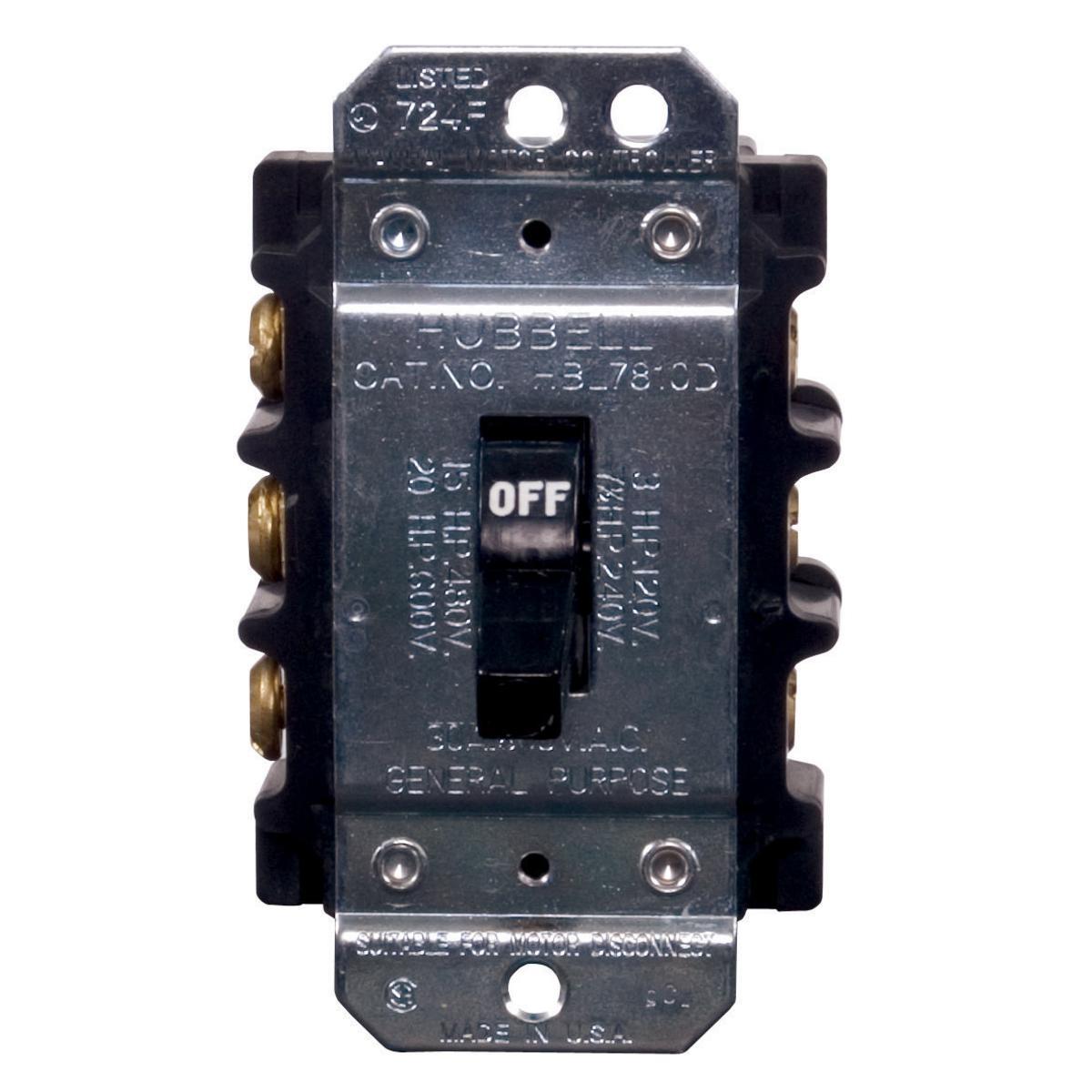

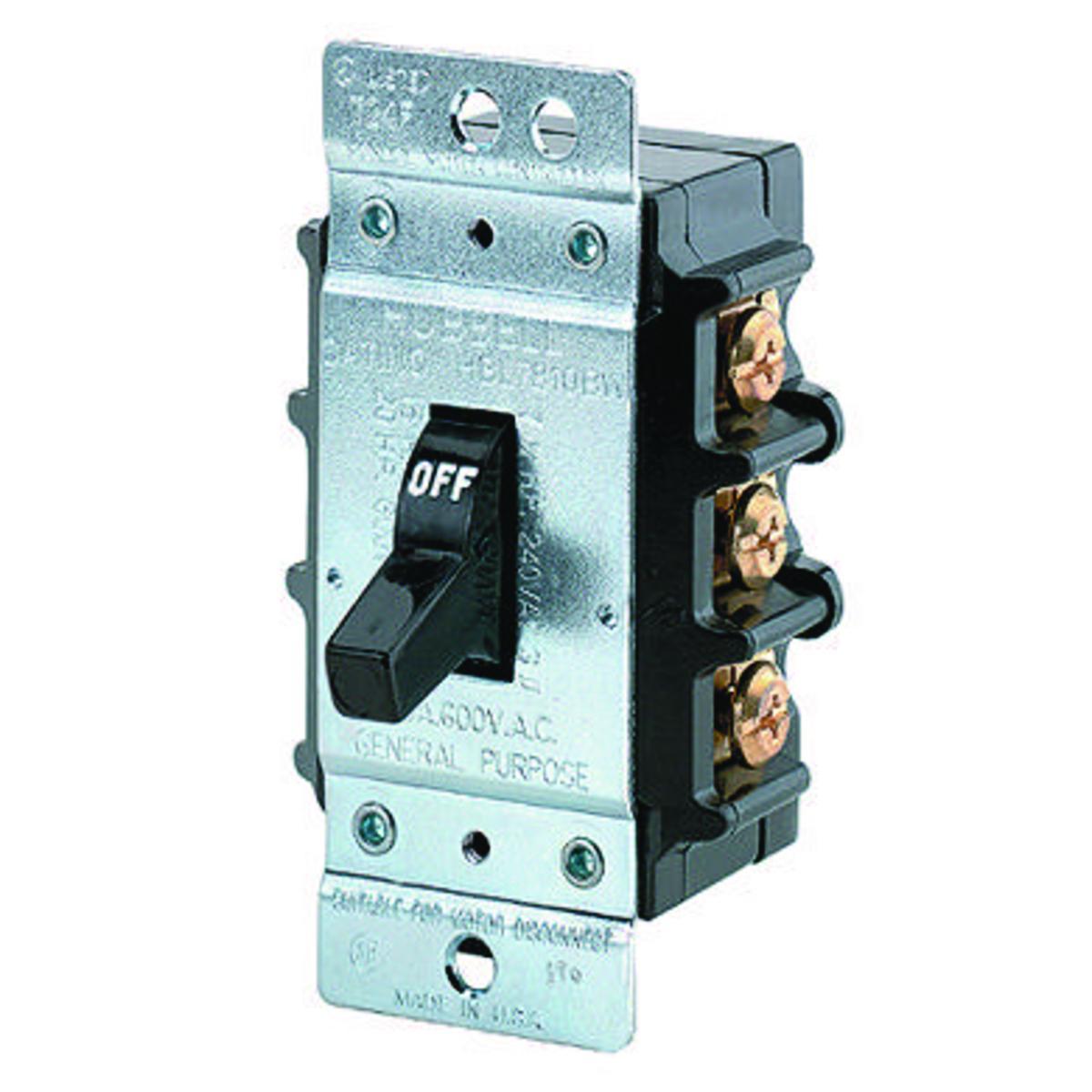

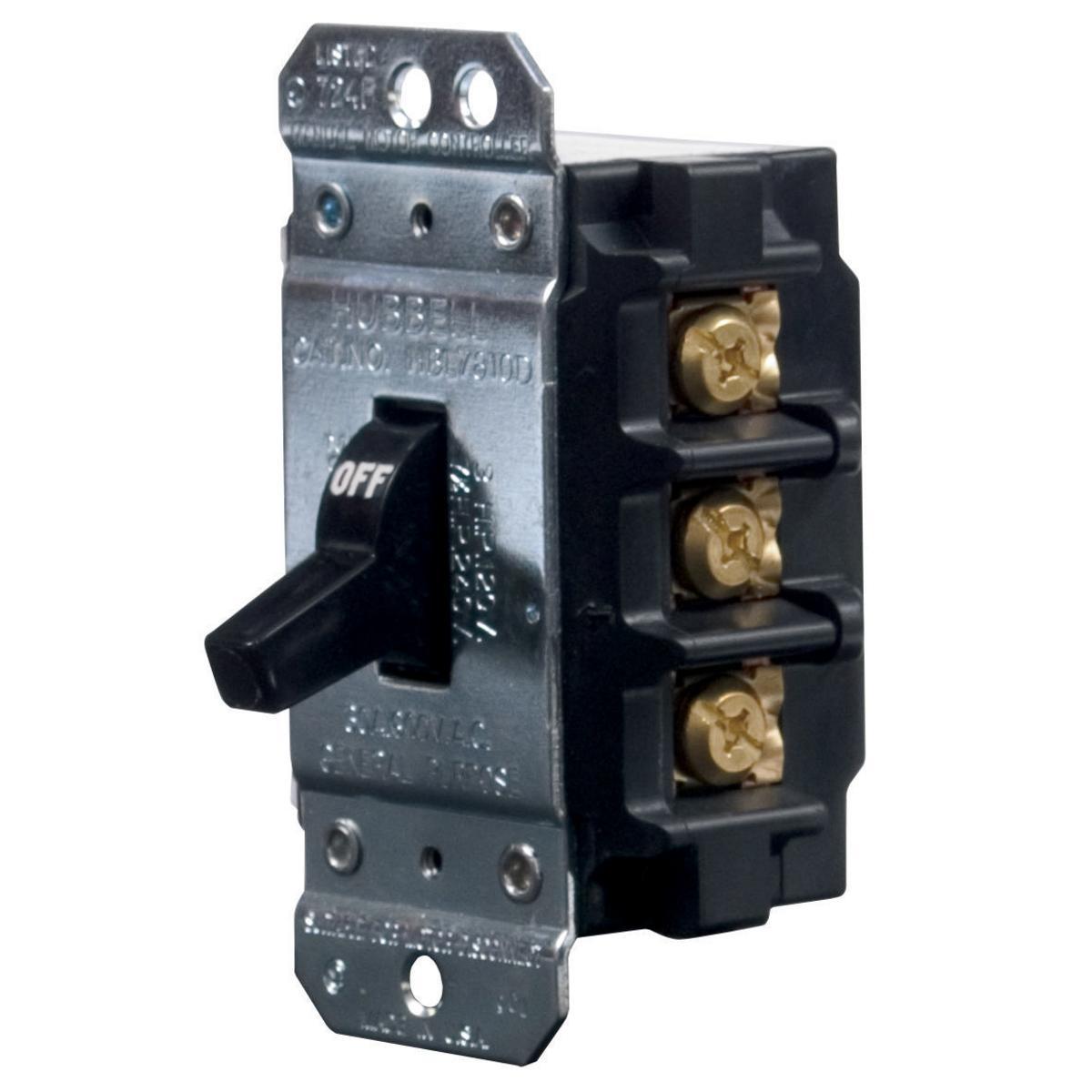

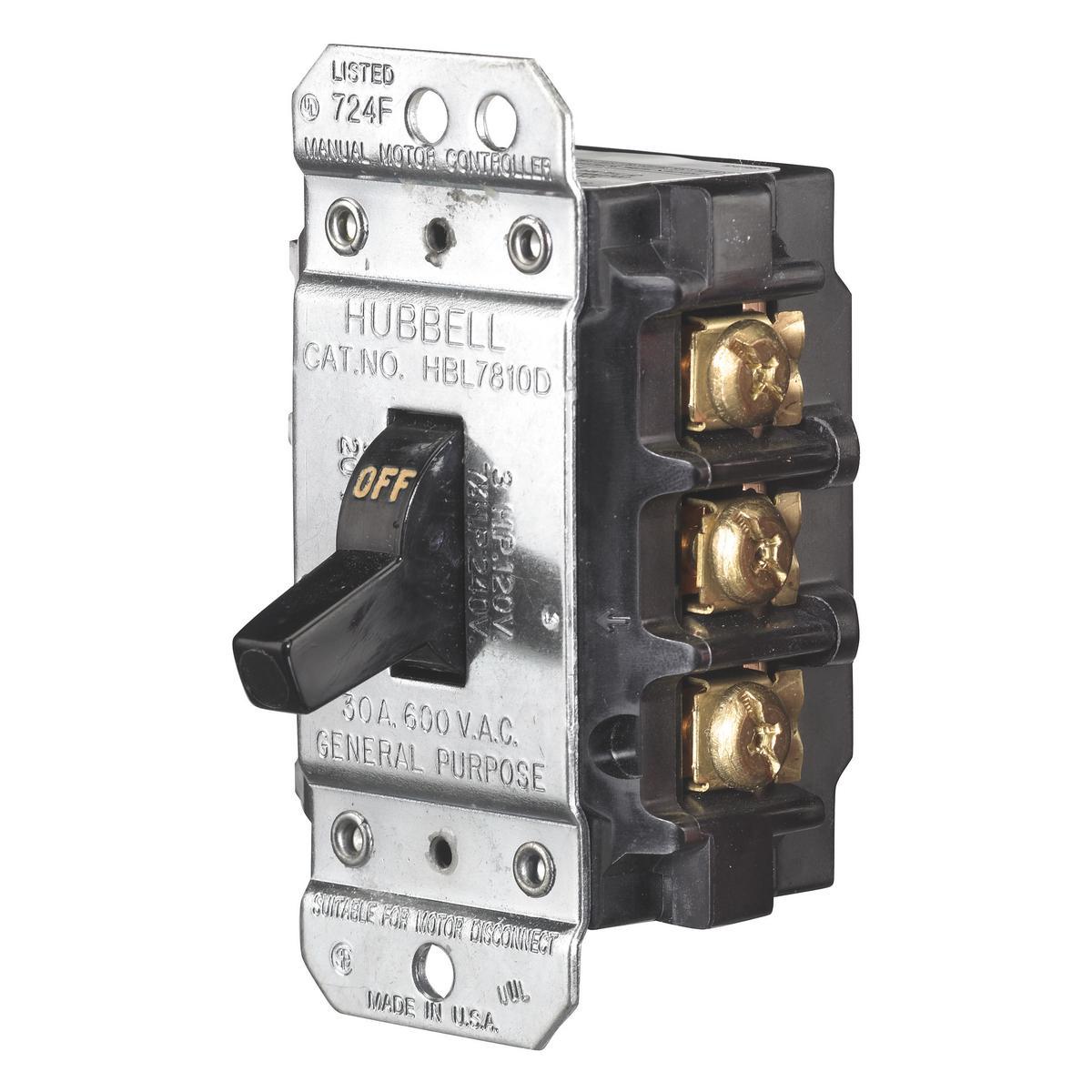

Hubbell Wiring Device-Kellems Circuit-Lock® HBL7810D 3-Phase Standard Manual Motor Controller, 600 VAC, 30 A, 18000 W Power Rating
For use in nearly any industrial environment, Hubbell® AC Manual Motor Controllers/Disconnects can be easily integrated into equipment and enclosures for either box or panel-mount installation. Rated "Suitable as Motor Disconnect," they feature a quick make and slow break operation that ensures reliability and long life. Hubbell® AC Manual Motor Controllers/Disconnects have a 10000 A high fault short circuit withstand rating and a heat resistant thermoset body that provides resistant to arc tracking and superior dielectric strength. The 30 A controller features a brass terminal screw clamping plate for secure back or side wiring, and the 60 A version is available with front or back wiring.
-
BrandHubbell Wiring Device-Kellems
-
UPC783585202792
-
Manufacturer Part NumberHBL7810D
-
CountryUSA
-
MaterialThermoset
-
ConnectionPressure Screw Terminal
-
ActuatorToggle
-
Amperage Rating30 A
-
Dimensions2.25 in W x 2.43 in D x 3.78 in H
-
Environmental Conditions-40 deg C
-
Power Rating18000 W
-
Type3-Phase Standard
-
Voltage Rating600 V AC
-
Number of Poles3
-
Operating Cycles10000 cycles
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5HA30 |
-
Alternative Part Number9237828
-
UNSPSC39121521
-
IDEA Index ID9237828
-
Package DescriptionEACH
-
Standards/ApprovalsUL 508|CSA Certified|RoHS Compliant
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Line Drawing
