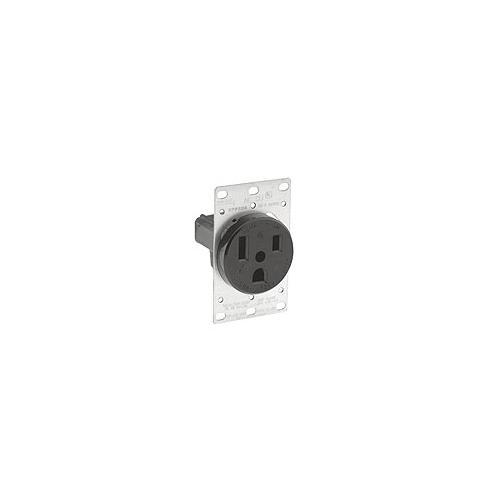

LEVITON 50-AMP 2-POLE 3-W RECEPTACLE LEV 5373
Leviton® line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade and more, these industrial grade devices are the electrical contractors choice for use in factories, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477823521
-
Manufacturer Part Number5373
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBlack
-
TypeExtra Heavy Duty Grounding
-
GradeCommercial
-
NEMA RatingNEMA 5-50R
-
Voltage Rating125 V AC
-
Amperage Rating50 A
-
Horsepower2 hp
-
Number of Poles2
-
Dimensions3.75 in H x 2.25 in W x 2.22 in D
-
Number of Wires3
- Heavy gauge, double wipe copper alloy contacts
- Easy-to-wire terminals accept up to no 4 AWG conductors
- Terminals marked for easy identification and fast wiring
- All mounting hardware included
- Flush mount devices fit single or 2-gang outlet boxes
- Surface mount devices are commercial grade and have concentric knockouts for 3/4 and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable
- Box mounting
- Grounding
- 2000 VAC minimum dielectric strength
- Galvanized steel strap
- 14 to 6 AWG wire terminal
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5HZL8 |
-
Alternative Part Number7337557
-
UNSPSC39121406
-
IDEA Index ID7337557
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399/E13393|UL94 V-2 Flammability Rating
-
Warranty10 years Limited
-
RoHS
