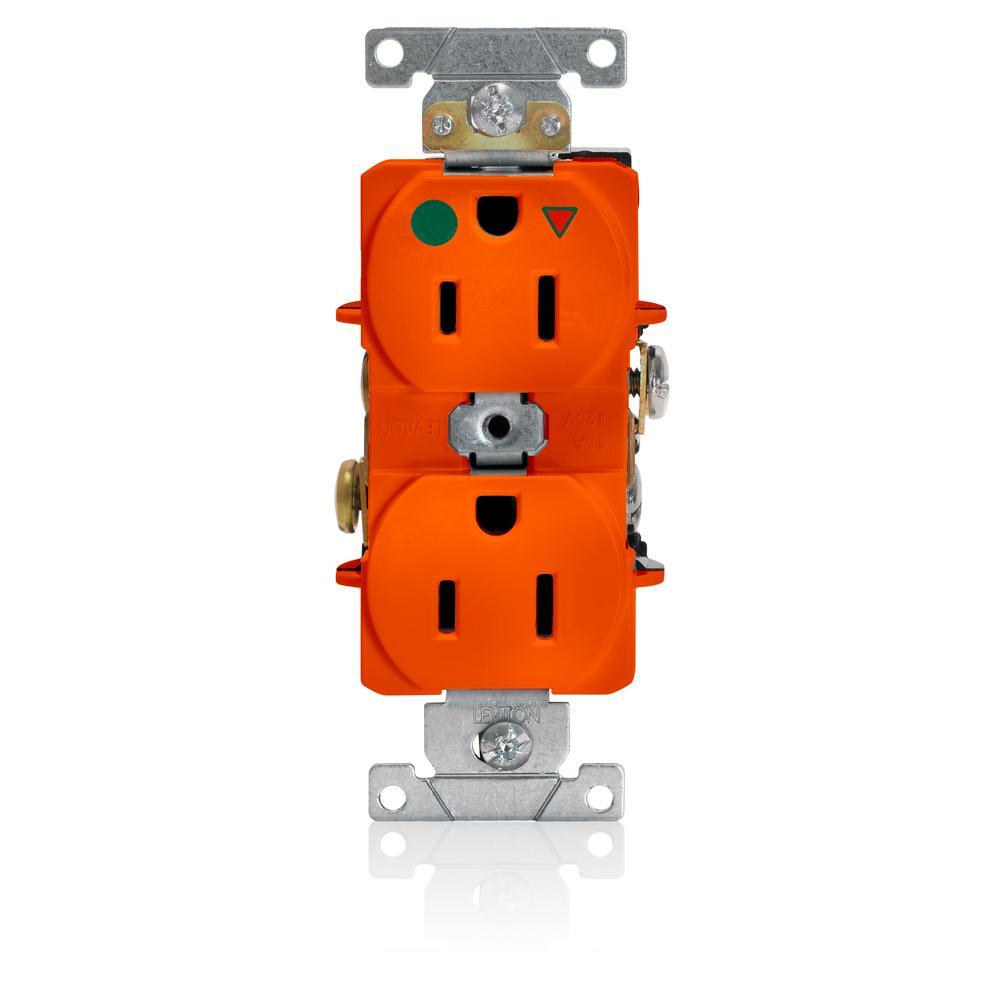

Leviton® 8200-IG Heavy Duty Isolated Ground Narrow Body Straight Blade Duplex Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Orange
All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.
-
BrandLeviton®
-
UPC078477057339
-
Manufacturer Part Number8200-IG
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialThermoplastic
-
ColorOrange
-
TypeHeavy Duty Isolated Ground Narrow Body
-
GradeHospital
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Amperage Rating15 A
-
Horsepower1/2 hp
-
Number of Poles2
-
Dimensions4.06 in H x 1.55 in W x 1.12 in D
-
Number of Wires3
-
EnclosureNEMA WD-1/WD-6
- Impact-resistant thermoplastic nylon cover and body
- Smooth face does not collect dirt
- Four corner latches securely fasten face
- Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity
- High-performance brass no 10-32 terminal screws to reduce conductor oxidation
- Back and side wire ground termination brass strap version
- Back and side wiring options
- Break-off tabs for easy two-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25LR73 |
-
Alternative Part Number7333967
-
UNSPSC39121406
-
IDEA Index ID7333967
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 No. 42 File No. 152105|NOM 057|UL Federal Specification WC-596 File No. E13399|UL 498 HG File No. E13399|UL 94 Flammability Rating
-
Warranty10 years Limited
-
Specification Sheet
-
Owners/User Manual
