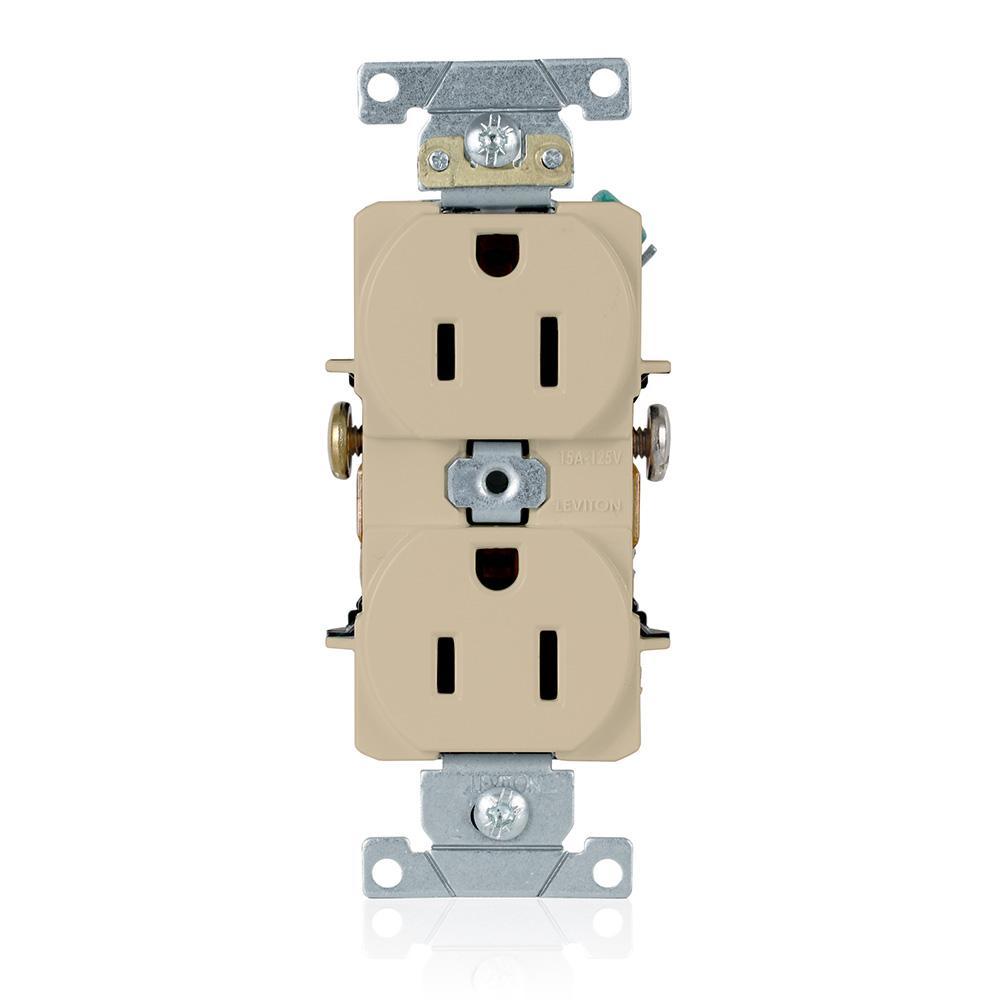

Leviton® 5242-I Heavy Duty Straight Blade Duplex Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Ivory
Leviton® line of Heavy Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
-
BrandLeviton®
-
UPC078477788134
-
Manufacturer Part Number5242-I
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic Nylon
-
ColorIvory
-
TypeHeavy Duty
-
GradeIndustrial
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Amperage Rating15 A
-
Horsepower1/2 hp
-
Number of Poles2
-
Dimensions4.06 in H x 1.55 in W x 1.12 in D
-
Number of Wires3
-
EnclosureNEMA WD-1/WD-6
- Impact resistant thermoplastic nylon cover and body
- Smooth face does not collect dirt
- Four corner latches securely fasten face
- Large, triple-wipe, brass T contacts for superior contact and conductivity
- Back and side wiring options
- Brass terminal screws to reduce conductor oxidation
- Break-off tabs for easy two-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity
- Wire lead receptacles for fast and easy installation
- Wallbox mounting
- Self-grounding
- 1-phase
- 2000 VAC minimum dielectric strength
- Industrial series heavy duty specification grade
- Galvanized steel strap
- 14 to 10 AWG wire terminal
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25KT20 |
-
Alternative Part Number7324195
-
UNSPSC39121406
-
IDEA Index ID7324195
-
Package DescriptionEACH
-
Standards/ApprovalsANSI (C-73)|CSA C22.2 No. 42 File No. 152105|NOM Certified|UL Federal Specification WC-596 File No. E13399|UL 498 File No. E13399|UL94 Flammability Rating
-
Specification Sheet
-
Owners/User Manual
-
Owners/User Manual
