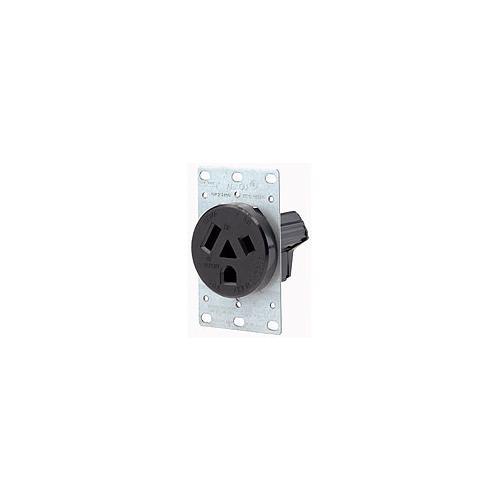

Leviton® 9750-A Extra Heavy Duty Grounding Power Plug Straight Blade Receptacle, 277 VAC, 50 A, 2 Poles, 3 Wires, Black
Leviton® line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade, etc., these industrial grade devices are the electrical contractors choice for use in factories, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477820278
-
Manufacturer Part Number9750-A
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
MaterialThermoplastic
-
ColorBlack
-
TypeExtra Heavy Duty Grounding Power Plug
-
GradeIndustrial
-
NEMA RatingNEMA 7-50R
-
Voltage Rating277 V AC
-
Amperage Rating50 A
-
Horsepower3 hp
-
Number of Poles2
-
Dimensions3.7 in H x 2.25 in W x 2.22 in D
-
Number of Wires3
-
EnclosureNEMA WD-1/WD-6
- Heavy gauge, double wipe copper alloy contacts
- Easy-to-wire terminals accept up to no 4 AWG conductors
- Terminals marked for easy identification and fast wiring
- All mounting hardware included
- Flush mount devices fit single or two-gang outlet boxes
- Surface mount devices are commercial grade and have concentric knockouts for 3/4 in and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable
- Grounding
- Maximum 30 deg C after 50 cycles OL at 150% rated current temperature rise
- Fits any wallplate with 2.465 in Dia center hole
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25LV48 |
-
Alternative Part Number7336499
-
UNSPSC39121406
-
IDEA Index ID7336499
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 File No. 42|CSA File No. File 152105|NOM 057 Certified|UL 498|UL File No. E13399|UL 94 Flammability Rated
-
Warranty10 years
-
Catalog
-
Specification Sheet
