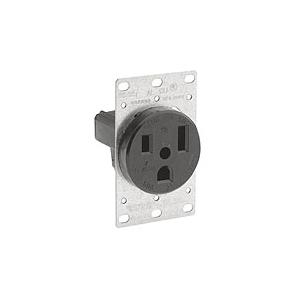

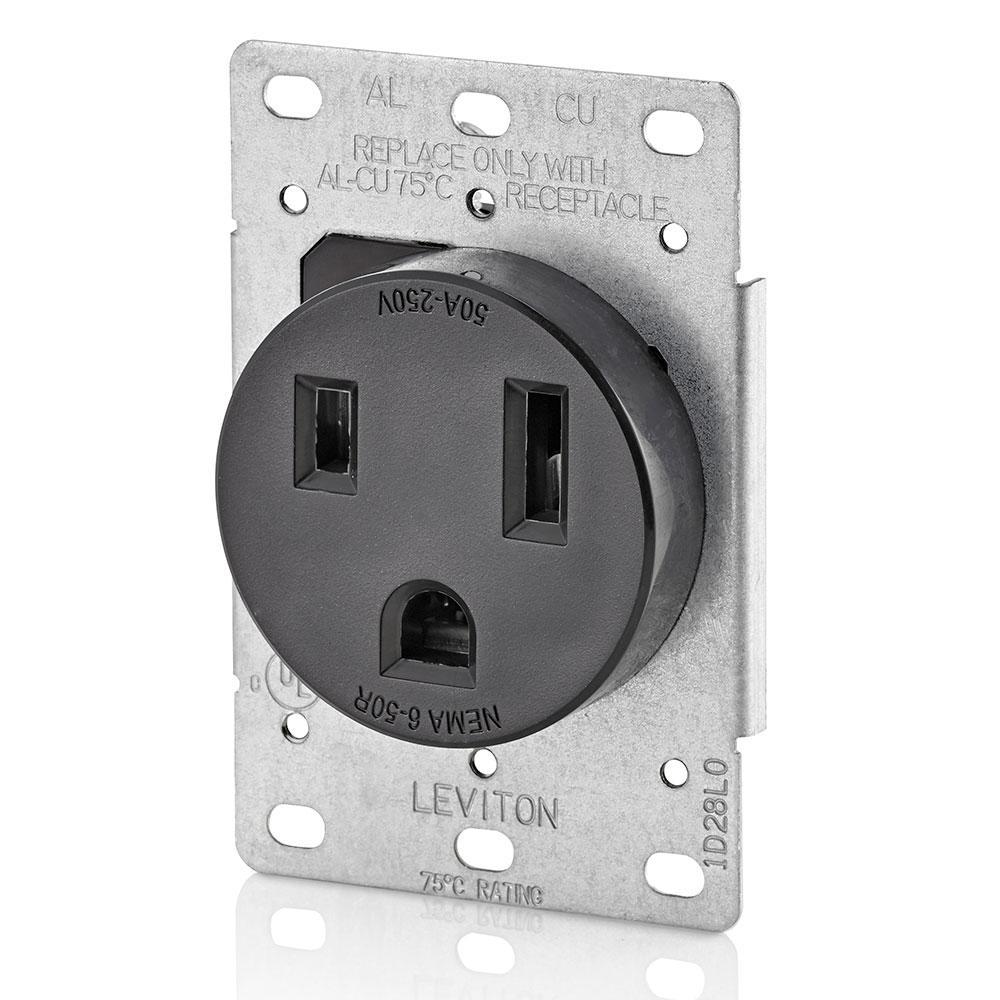

LEVITON 50-AMP 250-VOLT FLUSH RECEPTACLES LEV 5374
Leviton® line of extra heavy-duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial grade devices are the electrical contractor choice for use in factories, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477695401
-
Manufacturer Part Number5374-S00
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorWhite
-
TypeGrounding
-
GradeIndustrial
-
NEMA RatingNEMA 6-50R
-
Voltage Rating250 V AC
-
Amperage Rating50 A
-
Horsepower7-1/2 hp
-
Number of Poles2
-
Dimensions3.75 in H x 2.42 in W x 1.57 in D
-
Number of Wires3
-
EnclosureNEMA WD-1/WD-6
- Heavy gauge, double wipe copper alloy contacts
- Easy-to-wire terminals accept up to no 4 AWG conductors
- Terminals marked for easy identification and fast wiring
- All mounting hardware included
- Flush mount devices fit single or two-gang outlet boxes
- Surface mount devices are commercial grade and have concentric knockouts for 3/4 in and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 792TU4 |
-
Alternative Part Number13921906
-
UNSPSC39121406
-
IDEA Index ID13921906
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD6|UL 498
-
Warranty10 Years
-
Specification Sheet
-
Instruction/Installation Manual
