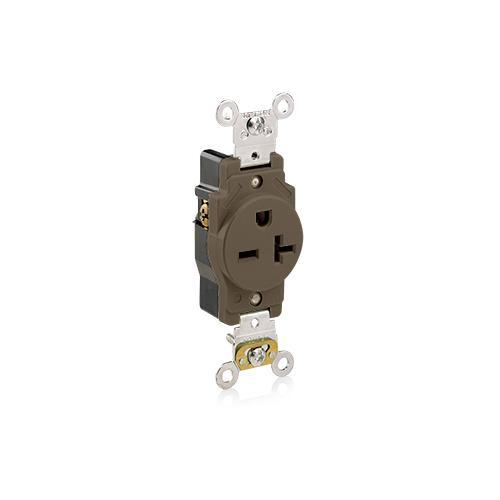

Leviton® 5461 Heavy Duty Single Straight Blade Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, Brown
Leviton® line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade and more, these industrial grade devices are the electrical contractors choice for use in factories, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477498903
-
Manufacturer Part Number5461
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialSantoprene TPV
-
ColorBrown
-
Type1-Phase Heavy Duty Single
-
GradeCommercial
-
NEMA RatingNEMA 6-20R
-
Voltage Rating250 V AC
-
Amperage Rating20 A
-
Horsepower2 hp
-
Number of Poles2
-
Dimensions46 in H x 1.31 in W x 16 in D
-
Number of Wires3
-
EnclosureNEMA WD-1/WD-6
- Impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten face
- Large triple wipe, brass T contacts for superior contact and conductivity
- Back and side wiring options
- Brass terminal screws to reduce conductor oxidation
- Break-OFF tabs allow easy 2-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Wire lead receptacles for fast and easy installation
- Smooth face does not collect dirt
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25MF12 |
-
Alternative Part Number7320019
-
UNSPSC39121406
-
IDEA Index ID7320019
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. LR406|UL Federal Specification W-C-596 File No. E13399|UL 498|UL94 V-2 Flammability Rating
-
RoHS
-
Instruction/Installation Manual
-
Owners/User Manual
