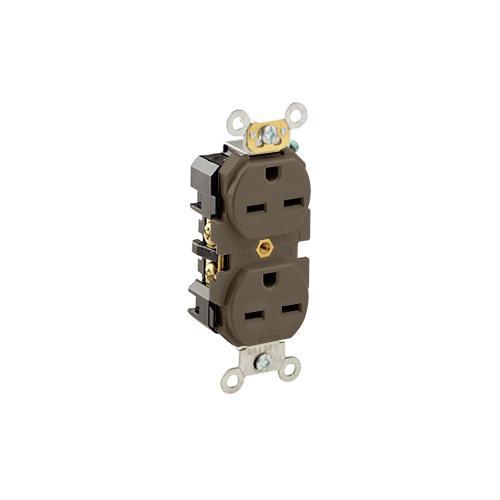

Leviton® 5662 1-Phase Duplex Heavy Duty Straight Blade Receptacle, 250 V AC, 15 A, 2 Poles, 3 Wires, Brown
Leviton® line of heavy duty industrial grade receptacles are available with a number of wiring options and features. These heavy duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact resistant construction.
-
BrandLeviton®
-
UPC078477819388
-
Manufacturer Part Number5662
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialThermoplastic
-
ColorBrown
-
Type1-Phase Duplex Heavy Duty
-
GradeCommercial
-
NEMA RatingNEMA 6-15R
-
Voltage Rating250 V AC
-
Amperage Rating15 A
-
Horsepower1-1/2 hp
-
Number of Poles2
-
Dimensions46 in H x 1.55 in W x 19 in D
-
Number of Wires3
- Impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten face
- Large triple wipe, brass T contacts for superior contact and conductivity
- Back and side wiring options
- Brass terminal screws to reduce conductor oxidation
- Break-OFF tabs allow easy 2-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Wire lead receptacles for fast and easy installation
- Wallbox mounting
- Self-grounding
- 2000 VAC minimum dielectric strength
- Galvanized steel strap
- 14 to 10 AWG wire terminal
- 1-phase
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25MF17 |
-
Alternative Part Number7335907
-
UNSPSC39121406
-
IDEA Index ID7335907
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification W-C-596 File No. E13399|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Warranty10 years Limited
-
Specification Sheet
-
Owners/User Manual
