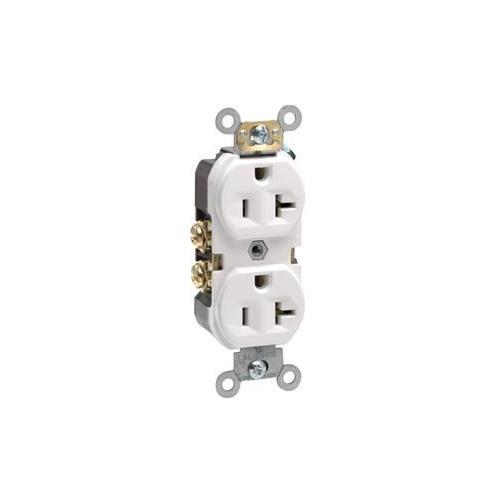

Leviton® BR20-W 1-Phase Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper resistant and more, these commercial grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477819814
-
Manufacturer Part NumberBR20-W
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialNylon
-
ColorWhite
-
Type1-Phase Duplex Heavy Duty
-
GradeCommercial
-
NEMA RatingNEMA 5-20R
-
Voltage Rating125 V AC
-
Amperage Rating20 A
-
Horsepower1 hp
-
Number of Poles2
-
Dimensions46 in H x 1.56 in W x 19 in D
-
Number of Wires3
- Withstands 2000 VAC per UL 498 dielectric voltage
- Full rated current limiting
- Max 30 deg C after 100 cycles overload at 150% rated current temperature rise
- Rated V-2 per UL 94 flammability
- Nylon body/face material, brass terminal/grounding screws/ground clips, zinc plated steel strap material/clamp nuts
- Brass hot, green ground, white neutral terminal ID
- 14 to 10 AWG terminal accommodation
- Self-grounding
- 2000 VAC minimum dielectric strength
- Narrow body
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25HE76 |
-
Alternative Part Number7336244
-
UNSPSC39121406
-
IDEA Index ID7336244
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD-2/WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Warranty10 years Limited
-
RoHS
-
Instruction/Installation Manual
-
Owners/User Manual
