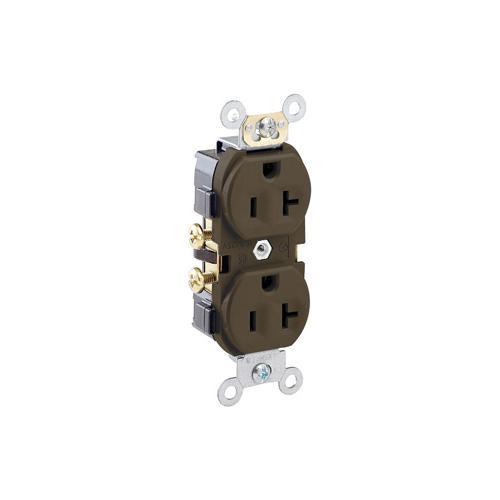

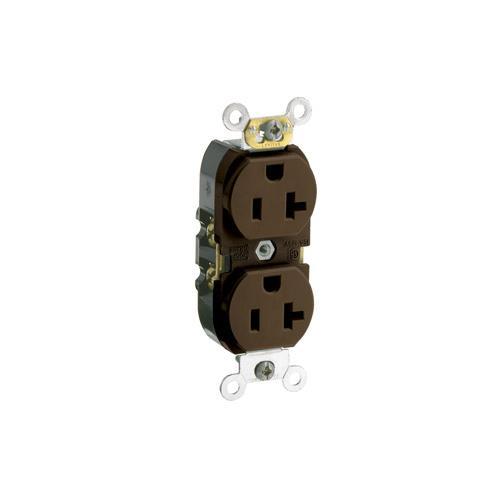

Leviton® CR20 1-Phase Duplex Indented Face Self-Grounding Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Brown
Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. These commercial grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477815427
-
Manufacturer Part NumberCR20
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialNylon
-
ColorBrown
-
Type1-Phase Duplex Indented Face Self-Grounding
-
GradeCommercial
-
NEMA RatingNEMA 5-20R
-
Voltage Rating125 V AC
-
Amperage Rating20 A
-
Horsepower1 hp
-
Number of Poles2
-
Dimensions46 in H x 1.56 in W x 19 in D
-
Number of Wires3
-
EnclosureNEMA WD-1/WD-6
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25HG76 |
-
Alternative Part Number7333833
-
UNSPSC39121406
-
IDEA Index ID7333833
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Specification Sheet
-
Owners/User Manual
-
Owners/User Manual
