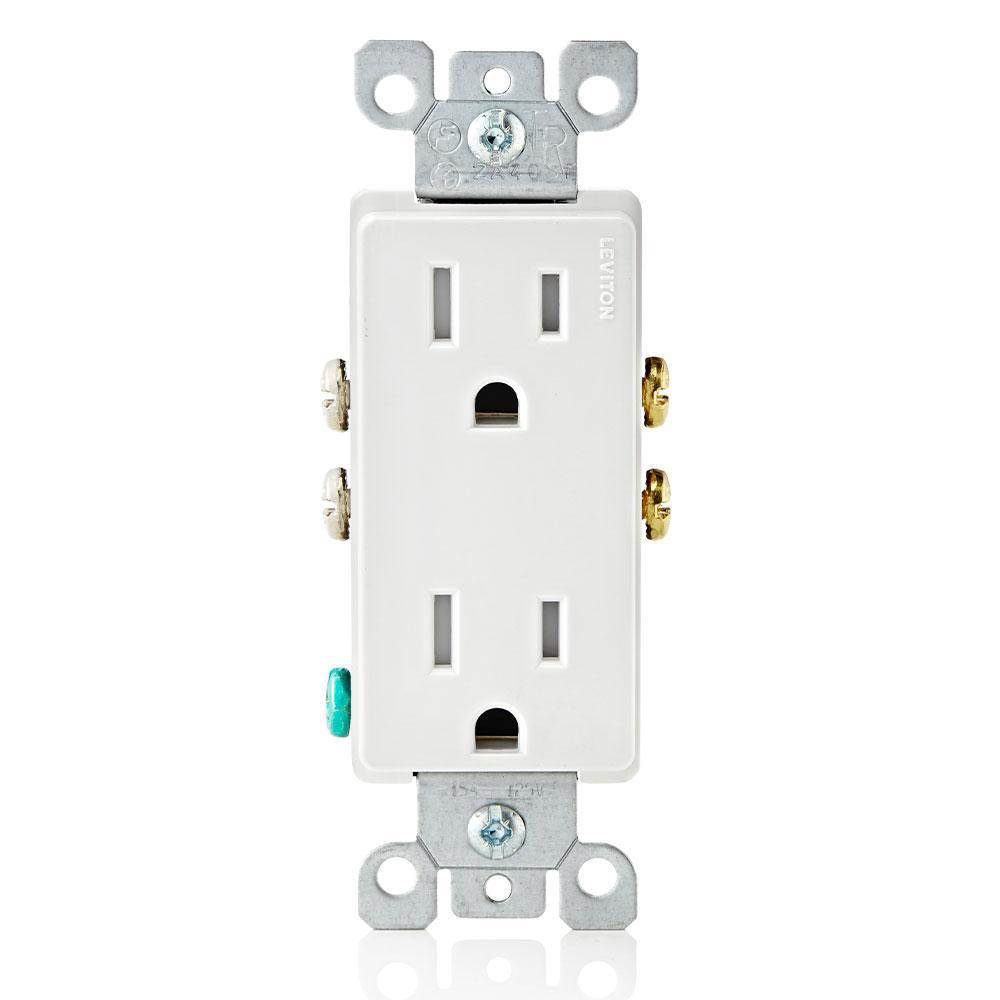

LEVITON 15-A 125-V TAMPER RES.RECEPTACLES LEV T-5325-WMP
Leviton® decora duplex receptacles are designed for a chic appearance, quick installation and durability. The impact resistant thermoplastic design allows for a long service life and high performance in homes, offices, schools and other settings. It also coordinates beautifully with Leviton® complete line of decora devices.
-
BrandLeviton®
-
UPC078477381625
-
Manufacturer Part NumberT5325-W
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeQuick-Wire® Push-In/Side Wire
-
MaterialThermoplastic
-
ColorWhite
-
TypeDuplex Grounding Tamper-Resistant
-
GradeCommercial
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions4.2 in H x 1.33 in W x 0.76 in D
-
Number of Wires3
-
EnclosureNEMA WD-6
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Double wipe power contacts for reliable conductivity and plug retention
- Heavy gauge zinc plated steel mounting strap
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25JU43 |
-
Alternative Part Number9869868
-
UNSPSC39121406
-
IDEA Index ID9869868
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD6|ANSI C73|NOM 057|CSA File No. LR406/CSA C22.22 No. 111|UL File No. E13399|UL 20/498/943|UL94 V-2 Flammability Rating
-
Warranty2 years Limited
-
Specification Sheet
-
Instruction/Installation Manual
