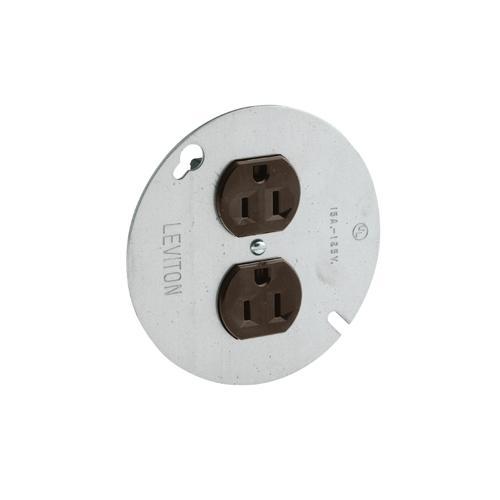

Leviton® 5042 Duplex Heavy Duty Grounding Straight Blade Receptacle With 4 in Cover, 125 V AC, 15 A, 2 Poles, 3 Wires, Brown
Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper resistant and more, these commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477209103
-
Manufacturer Part Number5042
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialNylon
-
ColorBrown
-
TypeDuplex Heavy Duty Grounding
-
GradeCommercial
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Amperage Rating15 A
-
Horsepower1/2 hp
-
Number of Poles2
-
Dimensions4.12 in Dia x 16 in H
-
Number of Wires3
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25ME83 |
-
Alternative Part Number7364858
-
UNSPSC39121406
-
IDEA Index ID7364858
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Specification Sheet
-
Owners/User Manual
