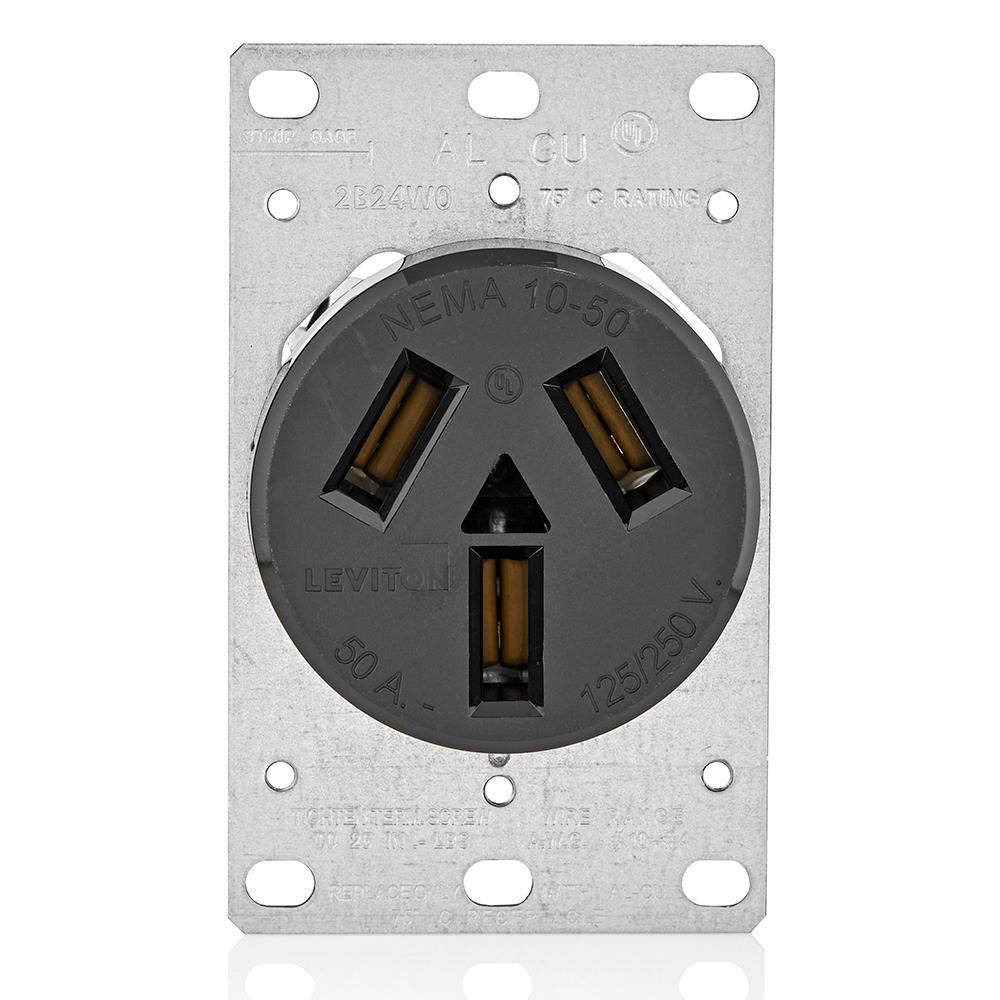

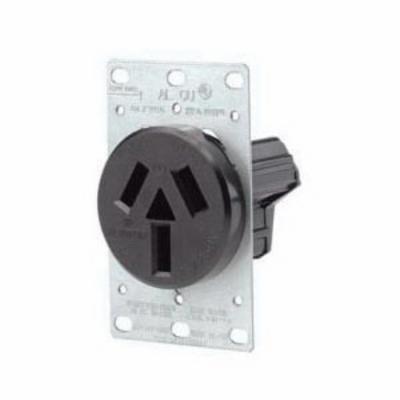

Leviton® 5206-S10 Straight Blade Receptacle, 125/250 V AC, 50 A, 3 Poles, 3 Wires, Black
Built of durable thermoplastic, Leviton® range and Dryer power outlets - in flush mount, surface mount and panel mount versions - come equipped with heavy gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Flush mount receptacles fit Leviton® wide range of 2.15"-diameter wallplates and mounting hardware is included.
-
BrandLeviton®
-
UPC078477905739
-
Manufacturer Part Number5206-S10
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialNylon
-
ColorBlack
-
TypeFlush Mount Non-Grounding
-
GradeIndustrial
-
NEMA RatingNEMA 10-50R
-
Voltage Rating125/250 V AC
-
Amperage Rating50 A
-
Horsepower3 hp
-
Number of Poles3
-
Dimensions3.7 in H x 2.25 in W x 2.22 in D
-
Number of Wires3
- Heavy gauge, double wipe copper alloy contacts
- Easy-to-wire terminals accept up to #4 AWG conductors
- Terminals marked for easy identification and fast wiring
- Flush mount devices fit single or two gang outlet boxes
- Industrial grade
- Galvanized steel strap material
- 14 to 6 AWG wire
-
Alternative Part Number14073946
-
UNSPSC39121406
-
IDEA Index ID14073946
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No. 42 File No. 152105|NOM 057|NEMA WD6|UL 498 File No. E13399
-
Warranty10 Years Limited
-
Catalog
-
Instruction/Installation Manual
