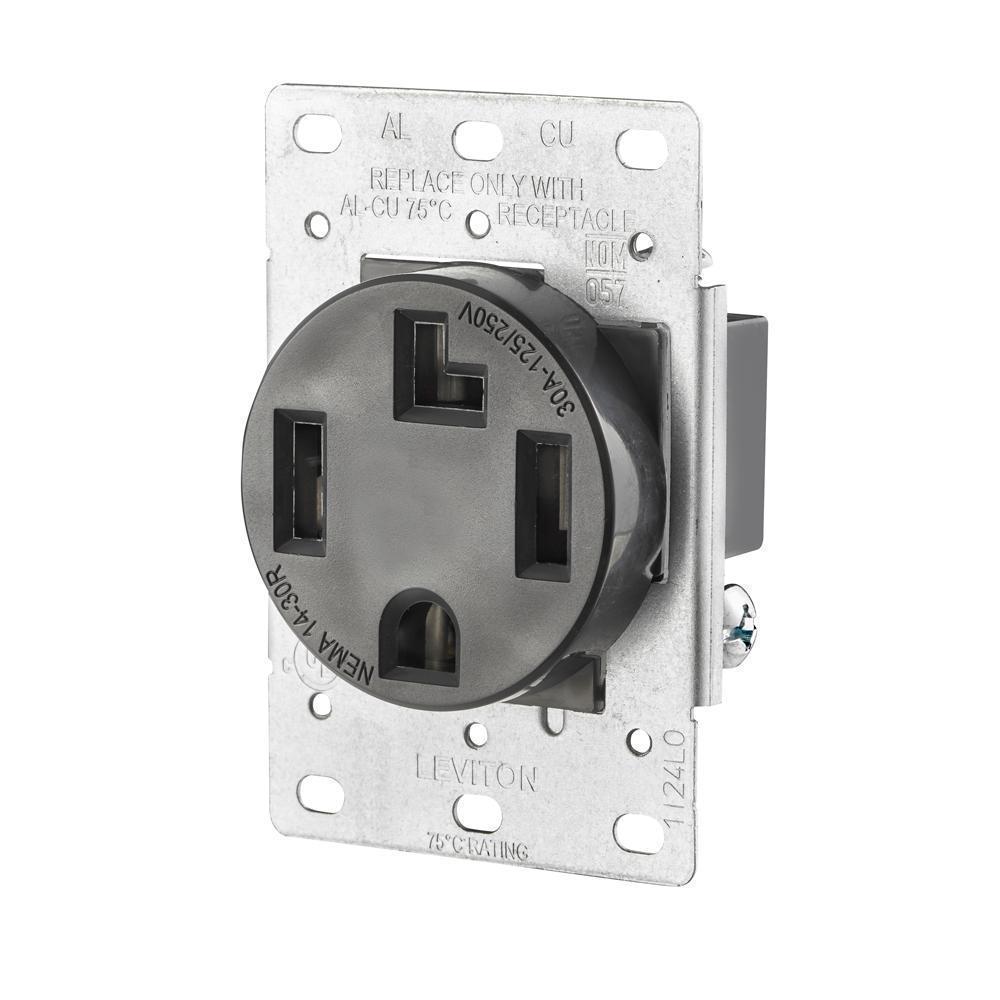

Leviton® 278-S00 Shallow Single Straight Blade Receptacle With Copper Alloy Contact, 125/250 V AC, 30 A, 3 Poles, 4 Wires, Black
Built of durable thermoplastic, Leviton® power receptacles - come equipped with heavy gauge, double wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Flush mount receptacles fit Leviton® wide range of 2.15- diameter wallplates and mounting hardware is included.
-
BrandLeviton®
-
UPC078477695319
-
Manufacturer Part Number278-S00
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBlack
-
TypeShallow Single
-
GradeIndustrial
-
NEMA RatingNEMA 14-30R
-
Voltage Rating125/250 V AC
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles3
-
Dimensions3.75 in H x 2.42 in W x 1.57 in D
-
Number of Wires4
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 792TC0 |
-
Alternative Part Number13905865
-
UNSPSC39121406
-
IDEA Index ID13905865
-
Package DescriptionEACH
-
Standards/ApprovalsUL498
-
Warranty10 Years Limited
-
Specification Sheet
-
Instruction/Installation Manual
-
Line Drawing
