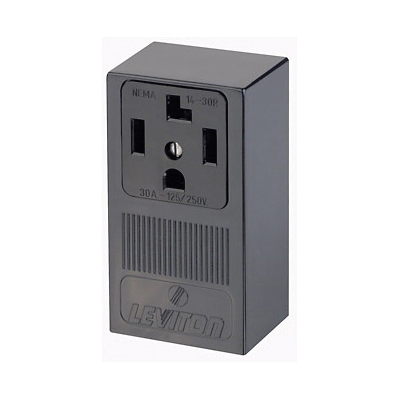

Leviton® 55054-P00 Grounding Single Straight Blade Receptacle, 125/250 V AC, 30 A, 3 Poles, 4 Wires, Black
Leviton® 55054-P00 Grounding Single Straight Blade Receptacle, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
-
BrandLeviton®
-
UPC078477982310
-
Manufacturer Part Number55054-P00
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBlack
-
TypeGrounding Single
-
GradeIndustrial
-
NEMA RatingNEMA 14-30R
-
Voltage Rating125/250 V AC
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles3
-
Dimensions4.82 in H x 2.68 in W x 2.04 in D
-
Number of Wires4
- Built of durable thermoplastic, Leviton® power receptacles come equipped with heavy gauge, double wire copper alloy contacts
- To ensure correct and speedy wiring, terminals have ID markings
-
Alternative Part Number14862381
-
UNSPSC39121406
-
IDEA Index ID14862381
-
Package DescriptionEACH
-
Standards/ApprovalsUL 498 File No. E13399|CSA C22.2 No. 42 File No. 152105|ANSI C-73|NOM 057|NEMA WD-6|UL 94 V-2 Flammability Rating
-
Warranty10 years Limited
-
Catalog
-
Instruction/Installation Manual
