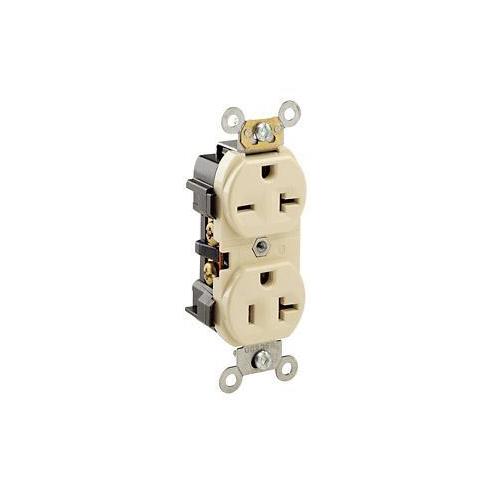

LEVITON 20A-125V/20A-250V DUPLEX IVORY REC LEV 5844-I
Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper resistant and more, these commercial grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477901861
-
Manufacturer Part Number5844-I
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialNylon
-
ColorIvory
-
Type1-Phase Duplex Dual Voltage Self-Grounding
-
GradeCommercial
-
NEMA RatingNEMA 5-20R/6-20R
-
Voltage Rating125/250 V AC
-
Amperage Rating20 A
-
Horsepower1 hp, 2 hp
-
Number of Poles2
-
Dimensions46 in H x 1.56 in W x 19 in D
-
Number of Wires3
- Terminal wiring screws fit inside a standard 1-gang wall box, adapter plate not required
- Impact resistant nylon cover and base for strength and resistance to chemicals and corrosives
- Easy-to-read voltage and amperage rating molded onto smooth face
- Extra heavy-duty, T-type triple wipe bronze contacts for maximum performance
- Ground holes configured up or down to be outside the device, accommodating up to 4 fed spec size straight or angle plugs
- #8 terminal screws accept up to no 12 AWG solid or stranded copper wire
- Termination anchor holes for easy conductor wiring
- Exclusive shield wall design protects ground connection from contact with live circuit conductors
- A and B molded on face and back for easy identification of receptacle pairs for split circuit conversion
- Convenient built-in strip gauge
- Wallbox mounting
- Self-grounding
- 1-phase
- 2000 VAC minimum dielectric strength
- Zinc plated steel strap
- 14 to 10 AWG wire terminal
- Narrow body
- 1 hp at 125 VAC, 2 hp at 250 VAC power ratings
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25KY11 |
-
Alternative Part Number7351621
-
UNSPSC39121406
-
IDEA Index ID7351621
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD-2/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification WC596 File No. E13399/UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Warranty10 years Limited
-
