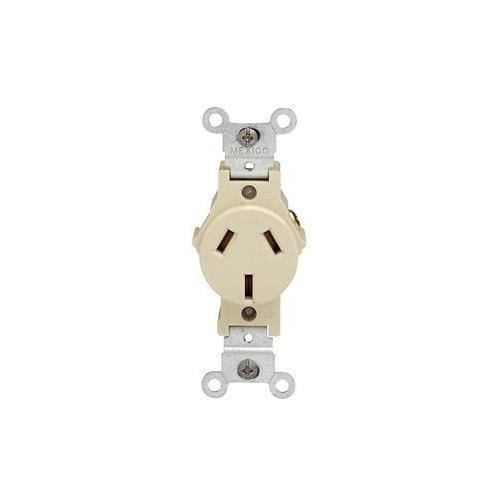

Leviton® 5032-I Heavy Duty Non-Grounding Single Straight Blade Receptacle, 125/250 V AC, 20 A, 2 Poles, 3 Wires, Ivory
Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper resistant and more, these commercial grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477208205
-
Manufacturer Part Number5032-I
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorIvory
-
TypeHeavy Duty Non-Grounding Single
-
GradeCommercial
-
NEMA RatingNEMA 10-20R
-
Voltage Rating125/250 V AC
-
Amperage Rating20 A
-
Horsepower1 hp, 2 hp
-
Number of Poles2
-
Dimensions46 in H x 1.38 in W x 16 in D
-
Number of Wires3
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
- All contacts are solid 1-piece brass for better conductivity
- Triple wipe, heavy duty power contacts set in deep pockets to resist damage
- Captive, color coded brass 8 AWG terminal screws
- Unique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in), providing secure grip without damaging cord jacket
- Power Indication™ devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
- Box mounting
- Non-grounding
- 2000 VAC minimum dielectric strength
- Grounding
- Narrow body
- Steel strap
- 1 hp L-N/2 hp L-L power ratings
- 14 to 10 AWG wire terminal
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25KR04 |
-
Alternative Part Number7364635
-
UNSPSC39121406
-
IDEA Index ID7364635
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification WC596 File No. E13399|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Warranty10 years Limited
-
Specification Sheet
-
Owners/User Manual
