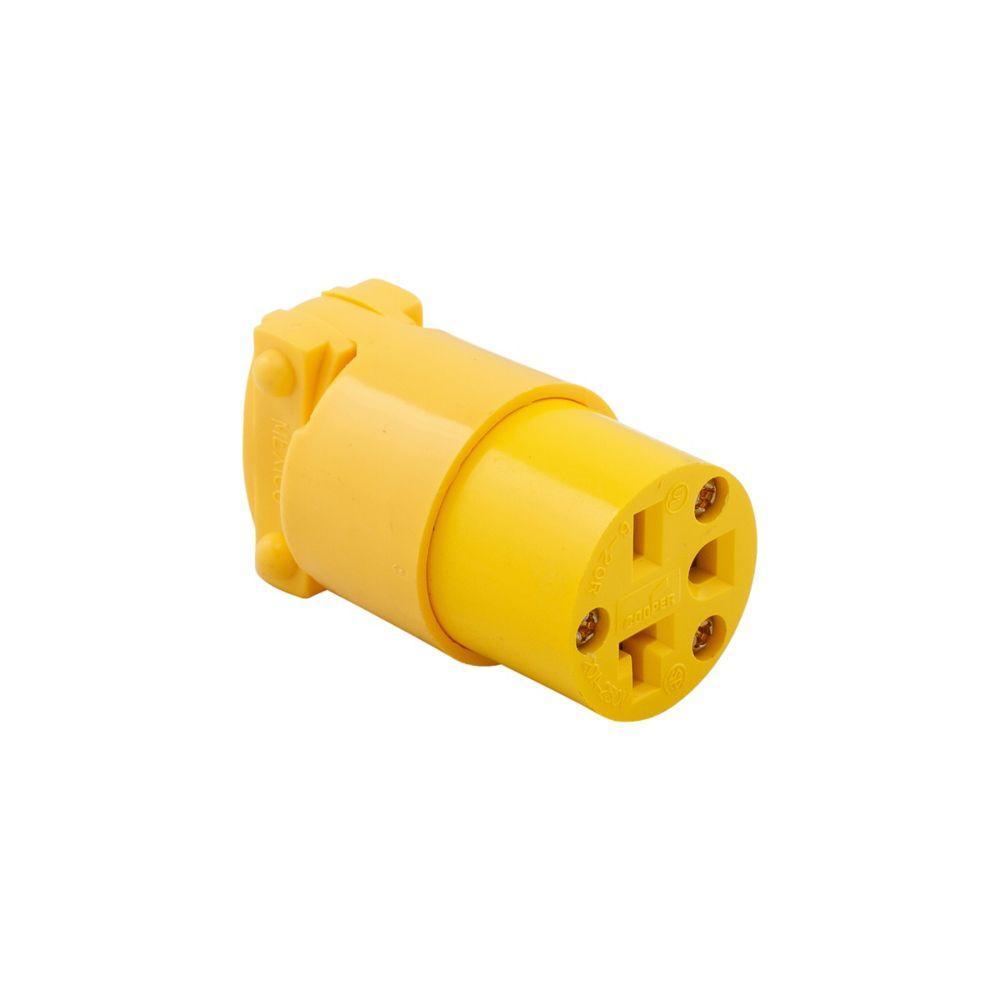

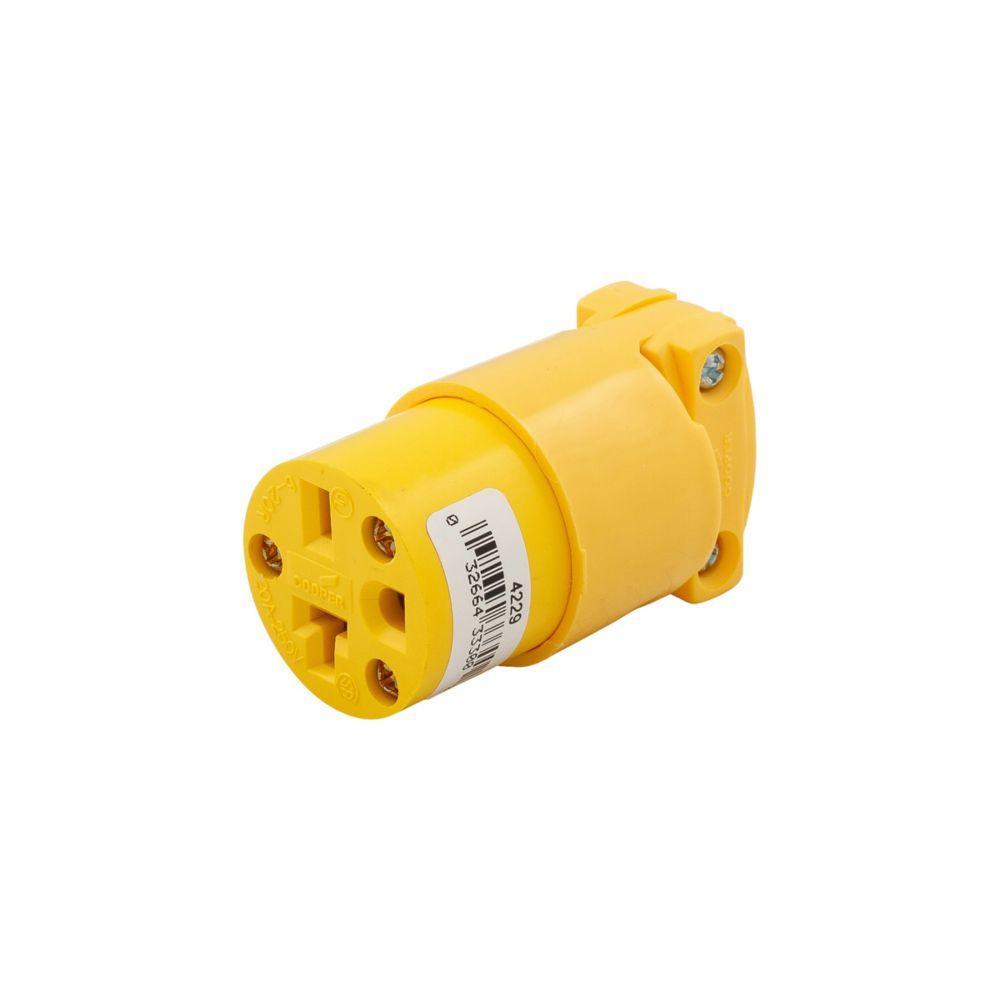

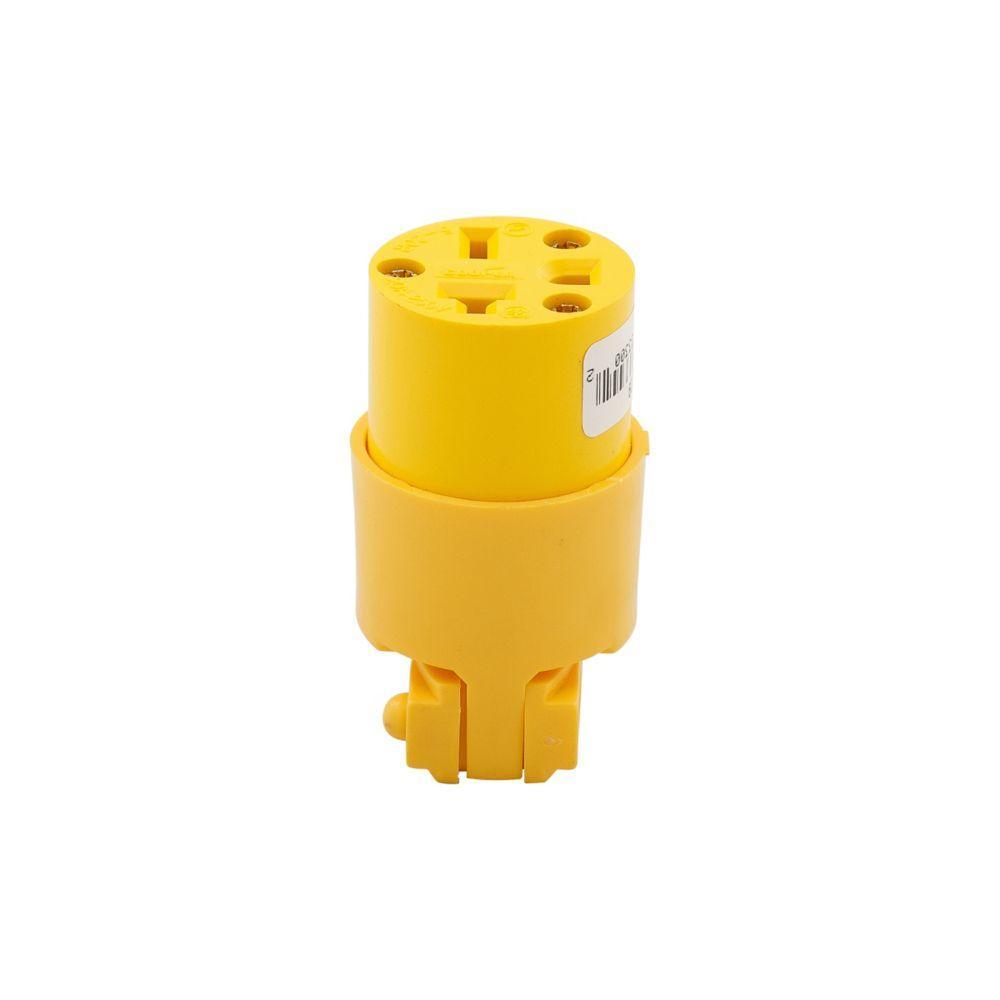

EATON Arrow Hart™ Eaton Wiring Devices 4229-BOX Grounding Straight Blade Connector, 250 V AC, 20 A, 2 Poles, 3 Wires, Yellow
Commercial grade - thermoplastic vinyl connectors feature solid brass plug blades are firmly embedded in body. terminal screw clamps are designed to contain wire and prevent binding. terminal screws backed out - ready for wiring. terminals in individual chambers to positively insulate conductors. vinyl angle plugs have eight possible positions for maximum convenience. combination slot Phillips® head mounting and terminal screws ease installation with power screwdrivers.
-
BrandEATON
-
UPC032664333002
-
Manufacturer Part Number4229-BOX
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon/Polypropylene
-
ColorYellow
-
TypeGrounding
-
GradeCommercial/Specification
-
NEMA RatingNEMA 6-20P
-
Voltage Rating250 V AC
-
Cord Diameter0.25 to 0.66 in
-
Amperage Rating20 A
-
Number of Poles2
-
Dimensions1.55 in Dia x 2.56 in H
-
Number of Wires3
- Solid brass plug blades are firmly embedded in body
- Terminal screw clamps are designed to contain wire and prevent binding
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Terminals in individual chambers to positively insulate conductors
- Vinyl angle plugs have eight possible positions for maximum convenience
- Combination slot Phillips® head mounting and terminal screws ease installation with power screwdriver
- 18 to 12 AWG wire
- Rugged PVC body resist moisture and chemicals
- Unique dimpled body design provides a secure grip
- Speed thread assembly screws tighten with just a few quick turns
- Suited for outdoor cords
- 2-piece strain relief clamp center cord for neat installation
- Zinc plated steel assembly screws
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25LE72 |
-
Alternative Part Number8171790
-
UNSPSC39121402
-
IDEA Index ID8171790
-
Package DescriptionEACH
-
Standards/ApprovalsUL,Federal Specification Classification 6221 02
-
Warranty10 Years Limited
-
Specification Sheet
-
Owners/User Manual
