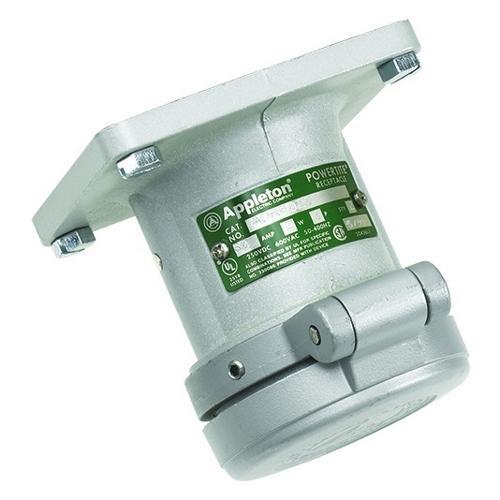

Appleton® Powertite® ADR6034 ADR 3-Phase Grounding Style 2 Pin and Sleeve Receptacle With Spring Door and Screw Cover, 600 V AC/250 V DC, 60 A, 4 Poles, 3 Wires, Natural
Powertite® Series Plugs, Connectors and Receptacles use our versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 A designs, they feature widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene sealing bushing. Shell only or shell plus extra pole grounding provides safe, make first, break last grounding.
-
BrandAppleton®
-
UPC781381186421
-
Manufacturer Part NumberADR6034
-
CountryUSA|Canada
-
Temperature Rating-40 to 225 deg F
-
Terminal TypePressure Wire
-
MaterialCopper-Free Aluminum
-
Frequency Rating50/400 Hz
-
ColorNatural
-
Type3-Phase Grounding Style 2
-
NEMA RatingNEMA 3/3R/4/4X
-
Voltage Rating600 V AC/250 V DC
-
Amperage Rating60 A
-
SeriesADR
-
Horsepower30 hp
-
Number of Poles4
-
Dimensions4.25 in H x 4.25 in W x 4.88 in D
-
Number of Wires3
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Locking screw and slot prevents plug cable collar from "backing off"
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Controlled length contacts ensure that ground makes first and breaks last for added safety
-
Alternative Part Number8325899
-
UNSPSC39121406
-
IDEA Index ID8325899
-
Package DescriptionEACH
-
Standards/ApprovalsUL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
-
Warranty1 Year
-
