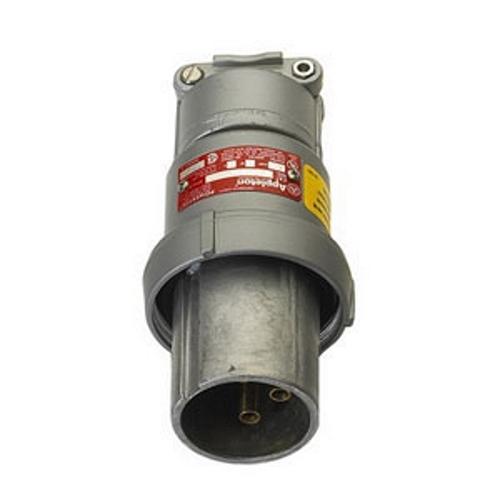

Appleton® Powertite® ACP3034BC ACP 3-Phase Grounding Style 2 Clamping Ring Plug, 250 V AC/600 V DC, 30 A, 4 Poles, 3 Wires, Metallic
Powertite® Series Plugs, Connectors and Receptacles use our versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 A designs, they feature widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene sealing bushing. Shell only or shell plus extra pole grounding provides safe, make first, break last grounding.
-
BrandAppleton®
-
UPC781381440424
-
Manufacturer Part NumberACP3034BC
-
CountryUSA|Canada
-
Temperature Rating-40 to 225 deg F
-
Terminal TypePressure Wire
-
MaterialCopper Free Aluminum
-
Frequency Rating50/400 Hz
-
ColorMetallic
-
Type3-Phase Grounding Style 2
-
NEMA RatingNEMA 3/3R/4/4X
-
Voltage Rating250 V AC/600 V DC
-
Amperage Rating30 A
-
SeriesACP
-
Number of Poles4
-
Dimensions6 in L x 3.13 in W
-
Number of Wires3
- Shell and extra pole grounding style 2
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 9/32 in dia wire recess
- Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 12G131 |
-
Alternative Part Number8344162
-
UNSPSC39121402
-
IDEA Index ID8344162
-
Package DescriptionEACH
-
Standards/ApprovalsUL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
-
Owners/User Manual
