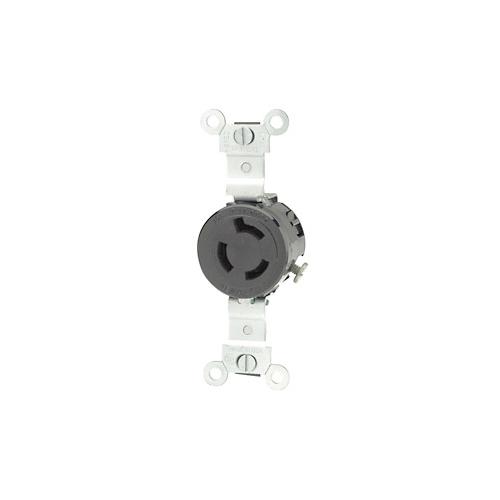

Leviton® 4560 Grounding Single Locking Receptacle, 250 V AC, 15 A, 2 Poles, 3 Wires, Black
Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
-
BrandLeviton®
-
UPC078477797020
-
Manufacturer Part Number4560
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialNylon
-
ColorBlack
-
TypeGrounding Single
-
GradeIndustrial
-
NEMA RatingNEMA L6-15R
-
Voltage Rating250 V AC
-
Amperage Rating15 A
-
Horsepower1-1/2 hp
-
Number of Poles2
-
Dimensions46 in H
-
Number of Wires3
- Box mounting
- 18 to 10 AWG terminal accommodation
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5HYP0 |
-
Alternative Part Number7326855
-
UNSPSC39121406
-
IDEA Index ID7326855
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42/LR406|Federal Specification WC596/E13399|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Specification Sheet
