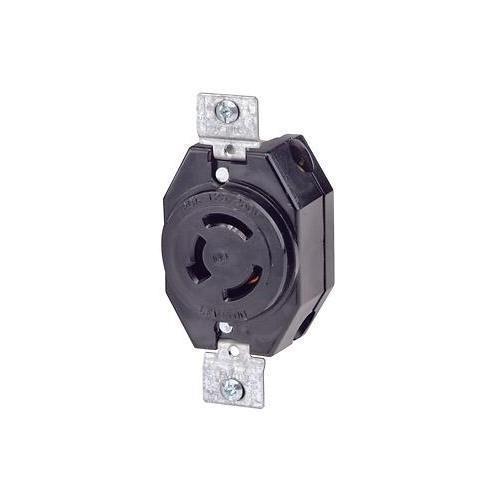

Leviton® 7310-B Extra Heavy Duty Non-Grounding Single Locking Receptacle, 125/250 V AC, 20 A, 3 Poles, 3 Wires, Black
Leviton® line of extra heavy duty industrial grade locking receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade and more, these industrial grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477821619
-
Manufacturer Part Number7310-B
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialNylon
-
ColorBlack
-
TypeExtra Heavy Duty Non-Grounding Single
-
GradeIndustrial
-
Voltage Rating125/250 V AC
-
Amperage Rating20 A
-
Number of Poles3
-
Dimensions3.62 in H x 1.7 in W x 1.43 in D
-
Number of Wires3
- Box mounting
- Non-NEMA rated
- 18 to 10 AWG terminal accommodation
- Flush mount
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25LK77 |
-
Alternative Part Number7336829
-
UNSPSC39121406
-
IDEA Index ID7336829
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42/LR406|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Specification Sheet
-
Owners/User Manual
