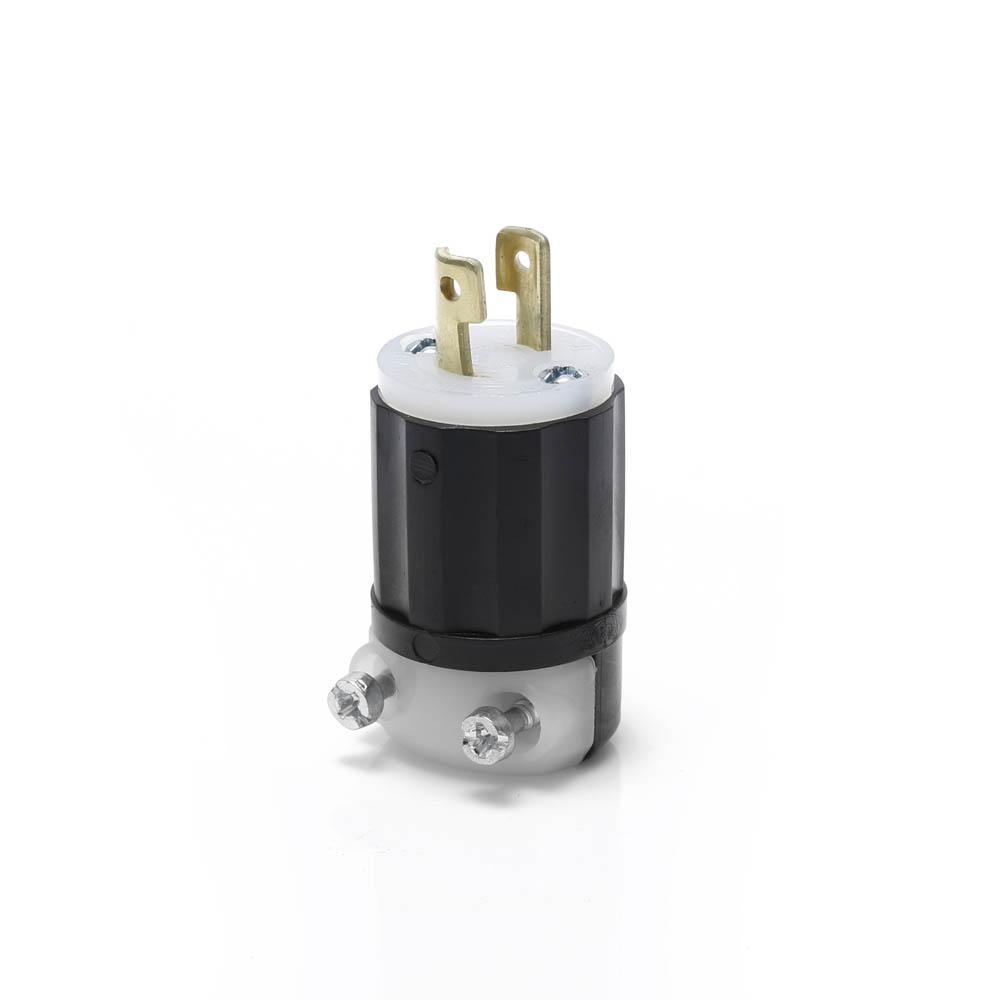

LEVITON 15-A MIDGET LOCKING ELECTRIC PLUGS LEV ML-1-P
Leviton® Black & White® line of industrial grade plugs and connectors offer superior performance, long lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, youll be sure to find the right device for your needs.
-
BrandLeviton®
-
UPC078477987117
-
Manufacturer Part NumberML1-P
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
TypeCable Mount Non-Grounding
-
GradeIndustrial
-
NEMA RatingNEMA ML1P
-
Voltage Rating125 V AC
-
Cord Diameter0.218 to 0.43 in
-
Amperage Rating15 A
-
Horsepower1/2 hp
-
Number of Poles2
-
Dimensions17 in Dia x 1.69 in H
-
Number of Wires2
- Certified for current interrupting at full rated current
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1PKG1 |
-
Alternative Part Number7366010
-
UNSPSC39121402
-
IDEA Index ID7366010
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No.42 File No. LR406|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
Specification Sheet
-
Specification Sheet
