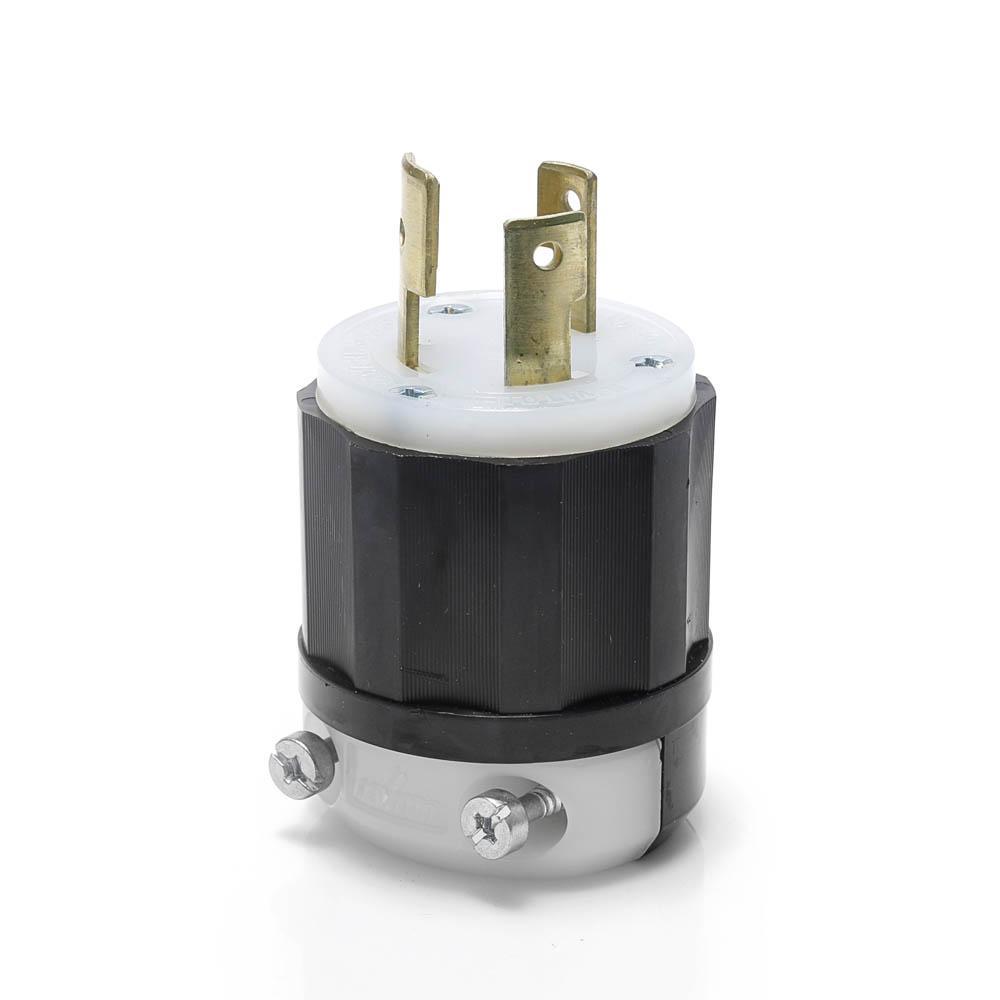

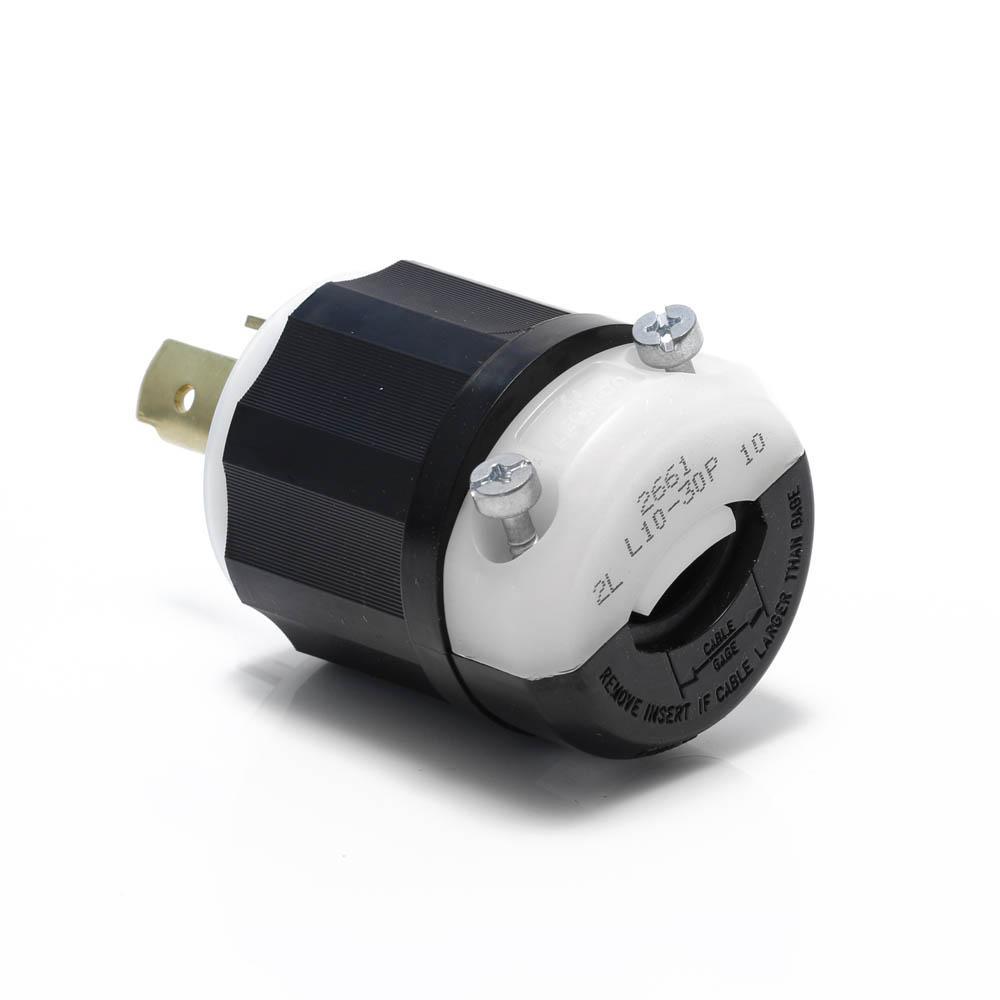

LEVITON 3-WIRE NON GRD. LOCKING ELEC/PLUGS LEV 2661
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
-
BrandLeviton®
-
UPC078477807910
-
Manufacturer Part Number2661
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
TypeCable Mount Non-Grounding
-
GradeIndustrial
-

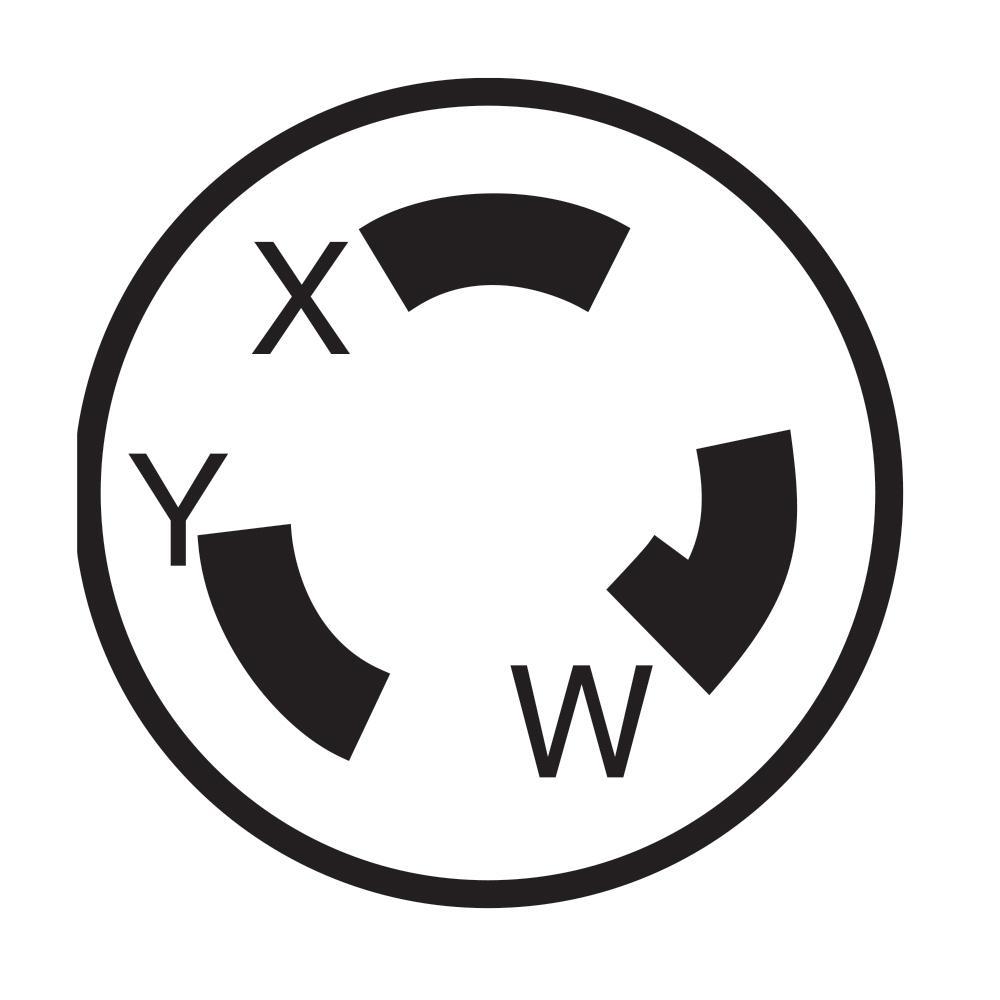

NEMA RatingNEMA L10-30P
-
Voltage Rating125/250 V AC
-
Cord Diameter0.385 to 0.93 in
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles3
-
Dimensions2.08 Dia x 2.47 in H
-
Number of Wires3
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 792T81 |
-
Alternative Part Number7331529
-
UNSPSC39121402
-
IDEA Index ID7331529
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
Specification Sheet
-
Specification Sheet
