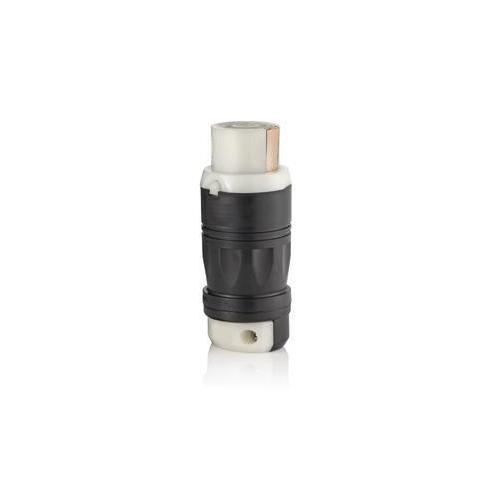

Leviton® Black & White® 3764C Grounding Locking Connector, 600 V AC/250 V DC, 50 A, 3 Poles, 4 Wires, Black/White
Leviton® Black & White® 50 A non-NEMA line of industrial grade locking blade devices feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts and blades are solid 1-piece construction for superior conductivity. Corrosion resistant versions feature nickel plated contacts and blades, plus stainless steel shrouds and screws. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477804469
-
Manufacturer Part Number3764C
-
CountryUSA
-
Temperature Rating-40 to 75 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
TypeGrounding
-
GradeIndustrial
-
Voltage Rating600 V AC/250 V DC
-
Cord Diameter0.68 to 1.125 in
-
Amperage Rating50 A
-
Number of Poles3
-
Dimensions2.56 in Dia x 7.1 in H
-
Number of Wires4
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5DLP9 |
-
Alternative Part Number7327442
-
UNSPSC39121413
-
IDEA Index ID7327442
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-0 Flammability Rating
-
WarrantyLimited Lifetime
-
Specification Sheet
