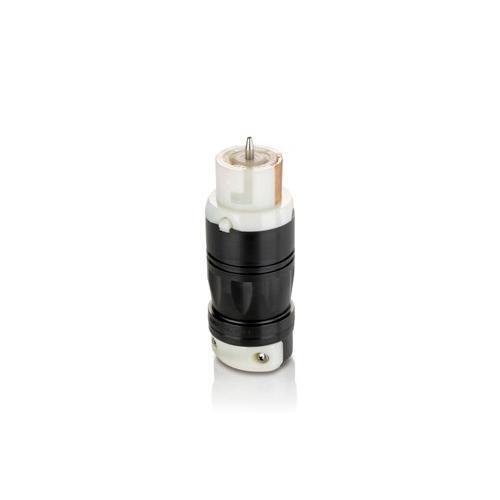

Leviton® Black & White® CS8364C 3-Phase Grounding Locking Connector, 250 V AC, 50 A, 3 Poles, 4 Wires, Black/White
Leviton® Black & White® 50 A non-NEMA line of industrial grade locking blade devices feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts and blades are solid 1-piece construction for superior conductivity. Corrosion resistant versions feature nickel plated contacts and blades, plus stainless steel shrouds and screws. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477326398
-
Manufacturer Part NumberCS8364C
-
CountryUSA
-
Temperature Rating-40 to 75 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
Type3-Phase Grounding
-
GradeIndustrial
-
Voltage Rating250 V AC
-
Cord Diameter0.68 to 1.125 in
-
Amperage Rating50 A
-
Number of Poles3
-
Dimensions2.56 in Dia x 7.1 in H
-
Number of Wires4
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5DLP7 |
-
Alternative Part Number9814841
-
UNSPSC39121408
-
IDEA Index ID9814841
-
Package DescriptionEACH
-
Standards/ApprovalsUL 498 File No. E13399|CSA C22.2 No. 42 File No. 152105|NOM 057|UL94 V-0 Flammability Rating
-
WarrantyLimited Lifetime
-
Specification Sheet
