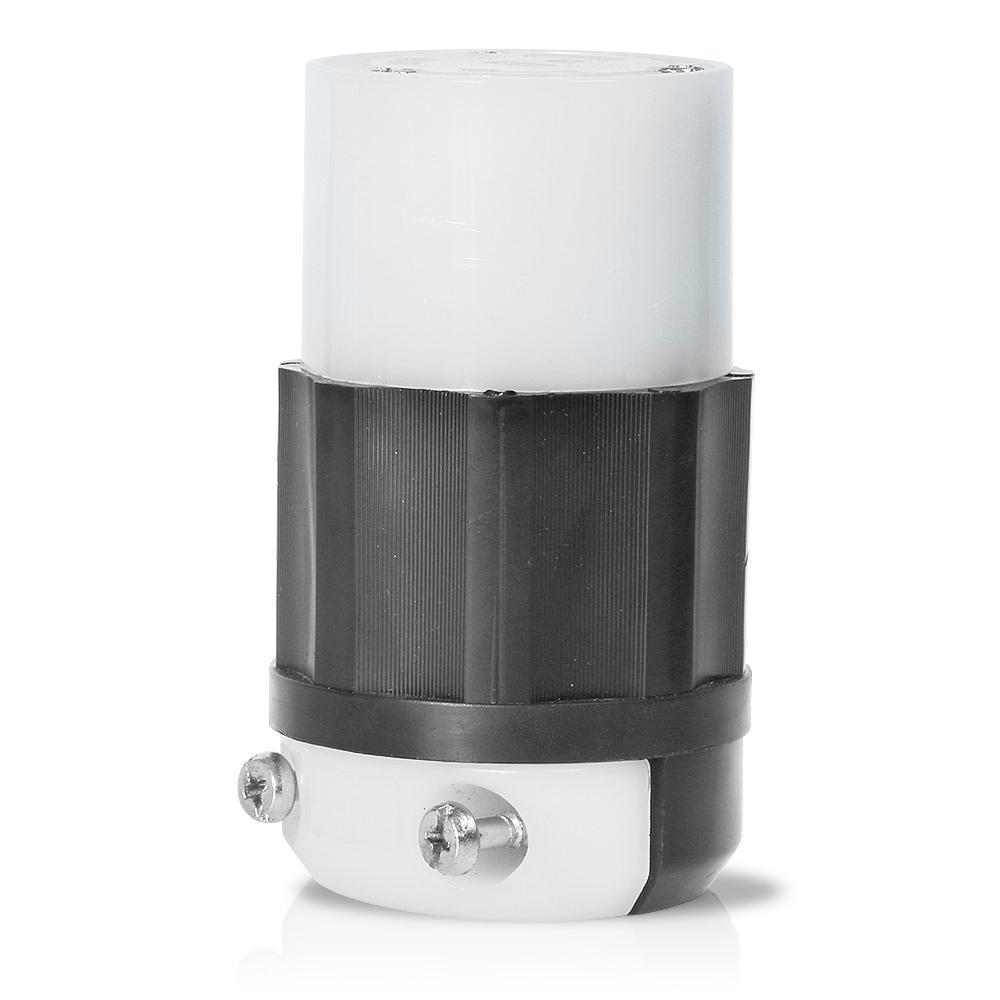

Leviton® C2623 1-Phase Cable Mount Grounding Locking Connector, 250 V AC, 30 A, 2 Poles, 3 Wires, Black/White
Leviton® industry leading locking devices, such as our black and white line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
-
BrandLeviton®
-
UPC078477811139
-
Manufacturer Part NumberC2623
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
Type1-Phase Cable Mount Grounding
-
GradeIndustrial
-
NEMA RatingNEMA L6-30R
-
Voltage Rating250 V AC
-
Cord Diameter0.385 to 0.93 in
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles2
-
Dimensions28 in Dia x 3.53 in L
-
Number of Wires3
- Super tough nylon body resists damage from severe impact, abrasion and chemicals
- Ergonomic, fluted body design with radial grip ridge is ideal for gripping, turning and pulling
- Cord clamp does not have to be disassembled from body for wiring - accepts wire mesh connection strain reliefs
- 1-piece, rivetless 0.035 in THK brass connector contacts and solid brass plug blades provide maximum conductivity and long service life
- Power Indication™ 20 and 30 a locking plugs and connectors equipped with green LED rated at 100000 hr (24/7 for 10 years)
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 792U87 |
-
Alternative Part Number7333228|12132589
-
UNSPSC39121402
-
IDEA Index ID7333228
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA File No. LR-406 Certified|NEMA WD-1/WD-6|UL 498 File No. E13393|UL94 V-2 Flammability Rating|ANSI C73|CSA File No. LR406|NOM 057 Certified|Federal Specification WC-596|File E13393 Listed
-
WarrantyLifetime
-
