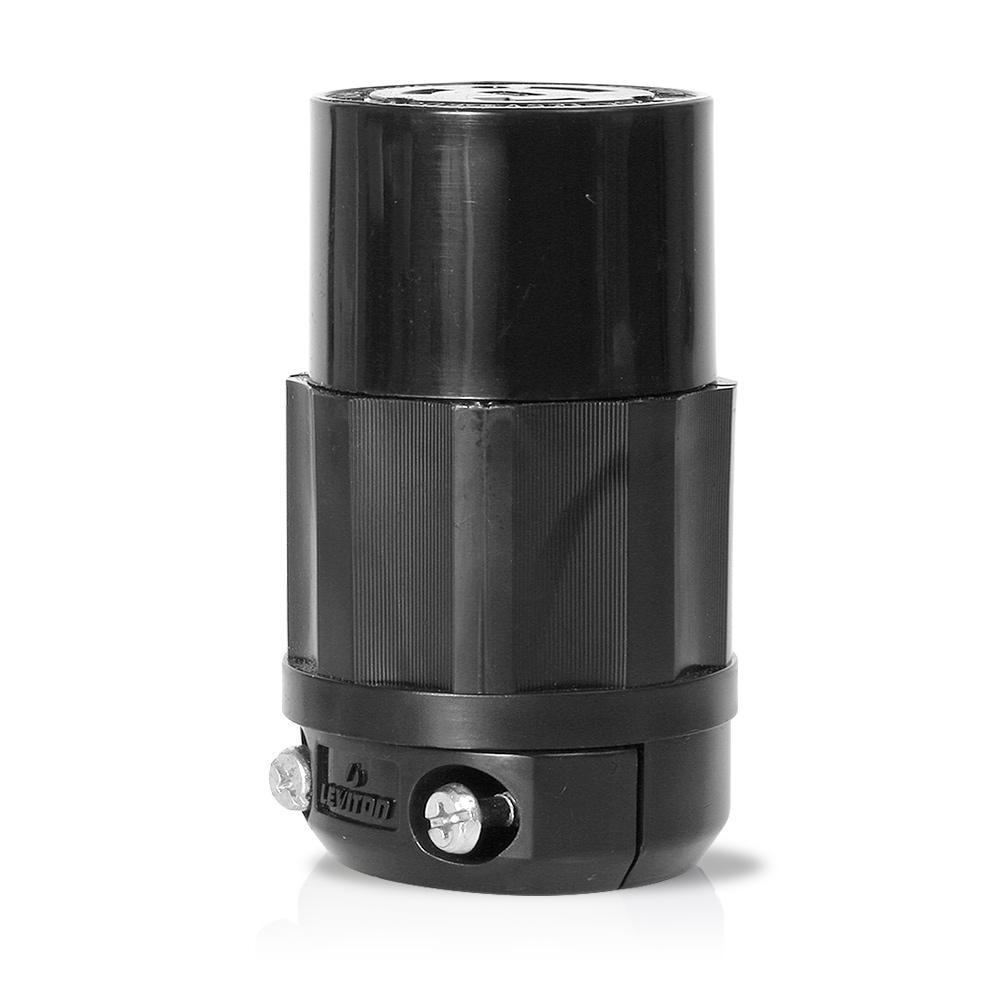

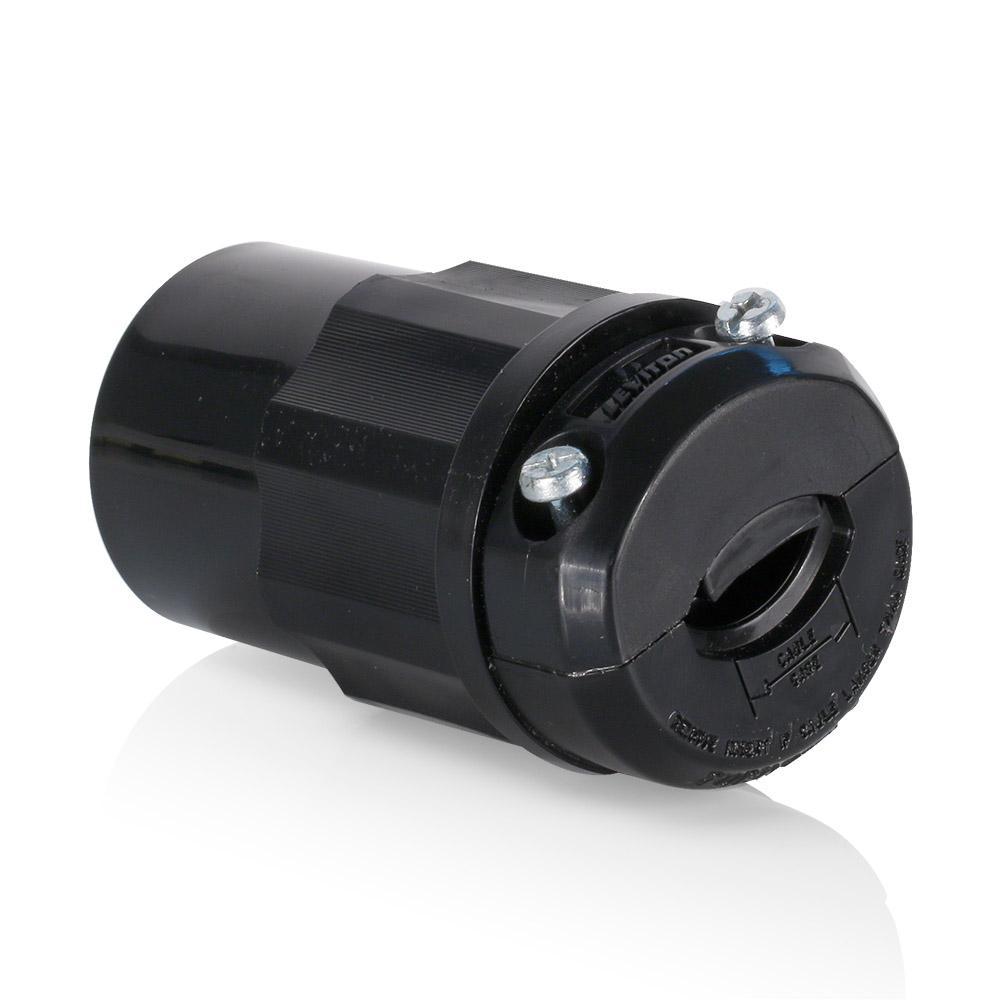

Leviton® 2423 3-Phase Grounding Cable Mount Locking Connector, 250 V AC, 20 A, 3 Poles, 4 Wires, Black/White
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
-
BrandLeviton®
-
UPC078477808306
-
Manufacturer Part Number2423
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
Type3-Phase Grounding Cable Mount
-
GradeIndustrial
-
NEMA RatingNEMA L15-20R
-
Voltage Rating250 V AC
-
Cord Diameter0.595 to 0.895 in
-
Amperage Rating20 A
-
Horsepower3-1/2 hp
-
Number of Poles3
-
Dimensions28 in Dia x 3.53 in H
-
Number of Wires4
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1PKJ3 |
-
Alternative Part Number7331791
-
UNSPSC39121402
-
IDEA Index ID7331791
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
RoHS
-
Instruction/Installation Manual
