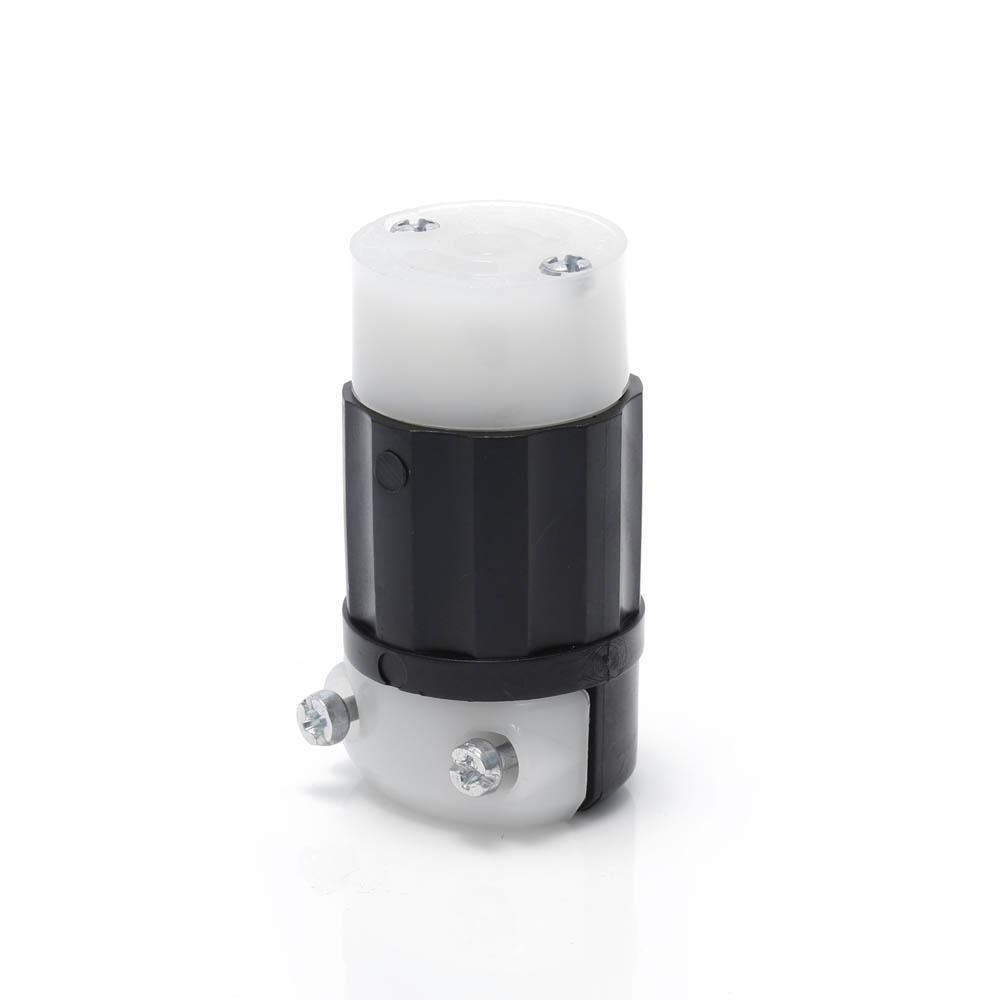

Leviton® ML2-C Cable Mount Midget Grounding Locking Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/White
Leviton® Black & White® midget line of industrial grade locking blade plugs and connectors are feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid 1-piece construction for superior conductivity. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477987292
-
Manufacturer Part NumberML2-C
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
TypeCable Mount Midget Grounding
-
GradeIndustrial
-
NEMA RatingNEMA ML1R
-
Voltage Rating125 V AC
-
Cord Diameter0.218 to 0.43 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.258 in Dia x 2.344 in H
-
Number of Wires3
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1PKG6 |
-
Alternative Part Number7366143
-
UNSPSC39121402
-
IDEA Index ID7366143
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
Specification Sheet
-
Specification Sheet
