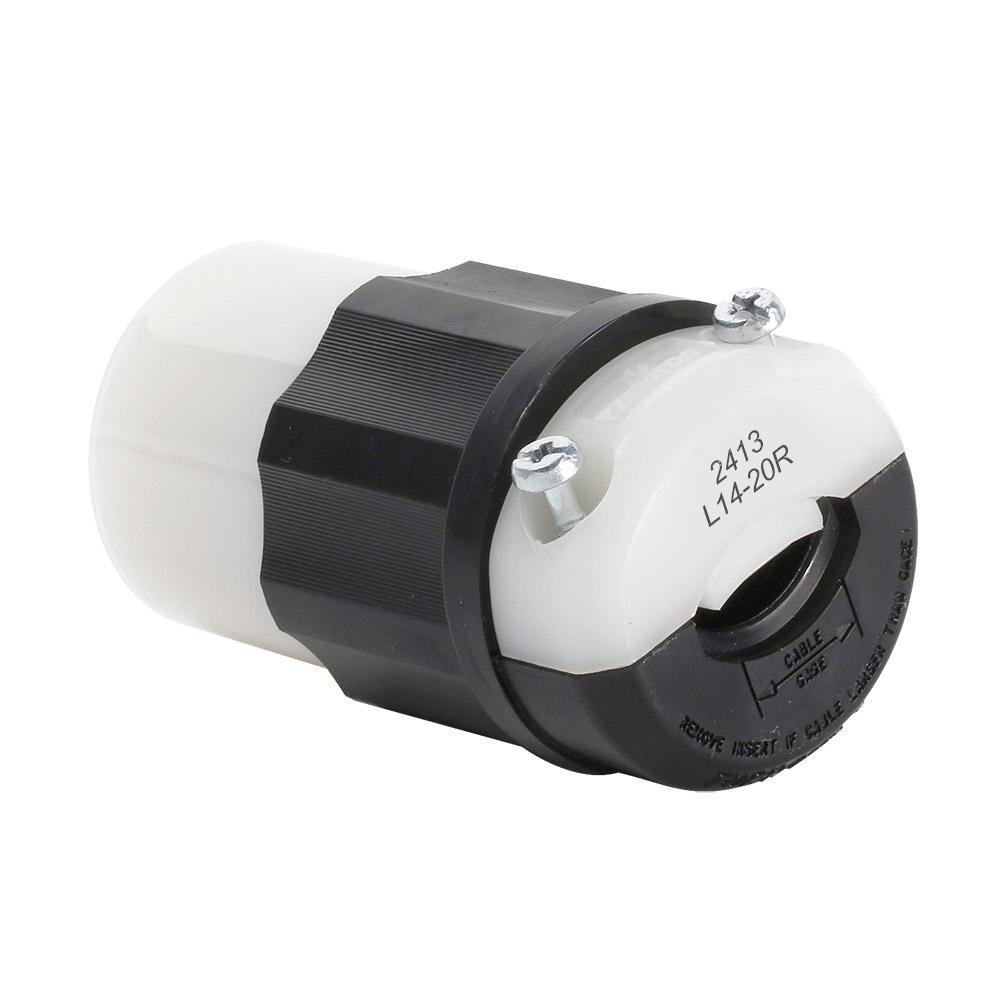

Leviton® 2413 3-Phase Grounding Cable Mount Locking Connector, 125/250 V AC, 20 A, 3 Poles, 4 Wires, Black/White
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
-
BrandLeviton®
-
UPC078477808290
-
Manufacturer Part Number2413
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
Type3-Phase Grounding Cable Mount
-
GradeIndustrial
-
NEMA RatingNEMA L14-20R
-
Voltage Rating125/250 V AC
-
Cord Diameter0.595 to 0.895 in
-
Amperage Rating20 A
-
Horsepower2 hp
-
Number of Poles3
-
Dimensions28 in Dia x 3.53 in H
-
Number of Wires4
- 2 hp (L-N), 2 hp (L-L) AC power rating
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1PKH9 |
-
Alternative Part Number7331784
-
UNSPSC39121402
-
IDEA Index ID7331784
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
Specification Sheet
-
Specification Sheet
