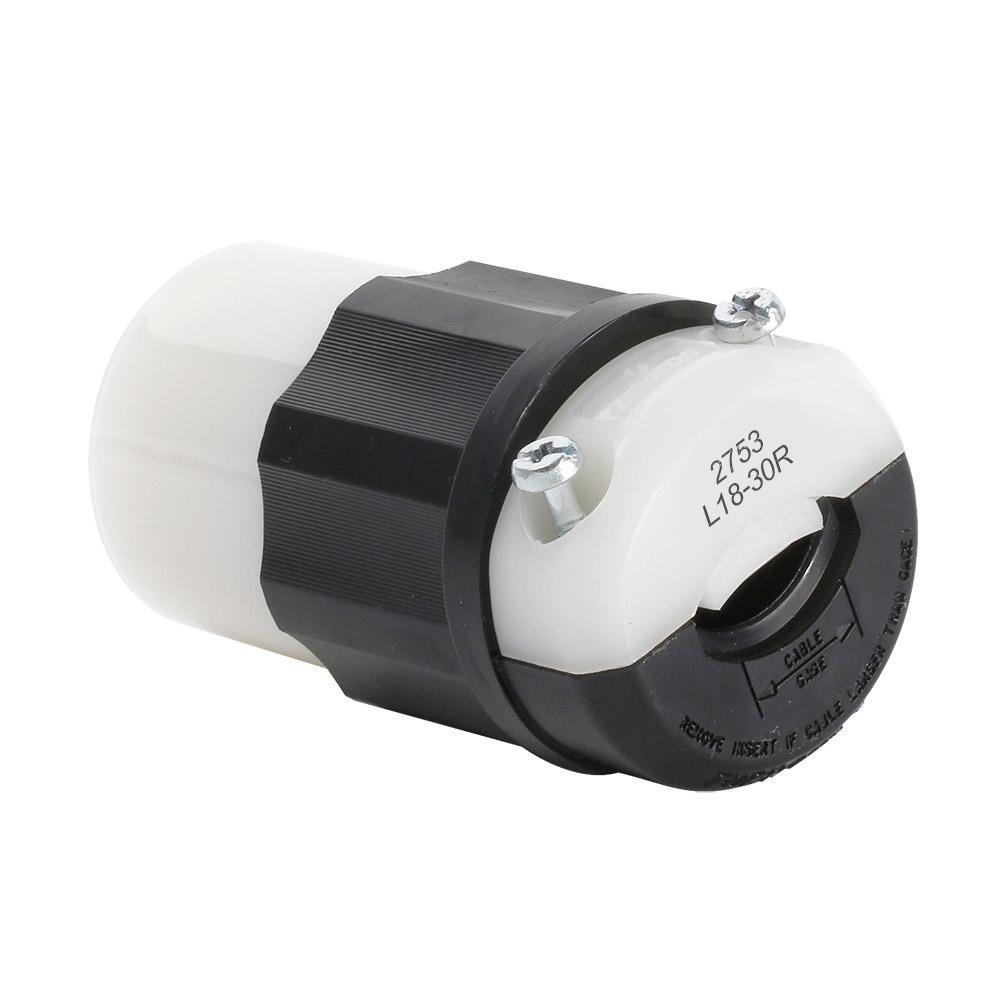

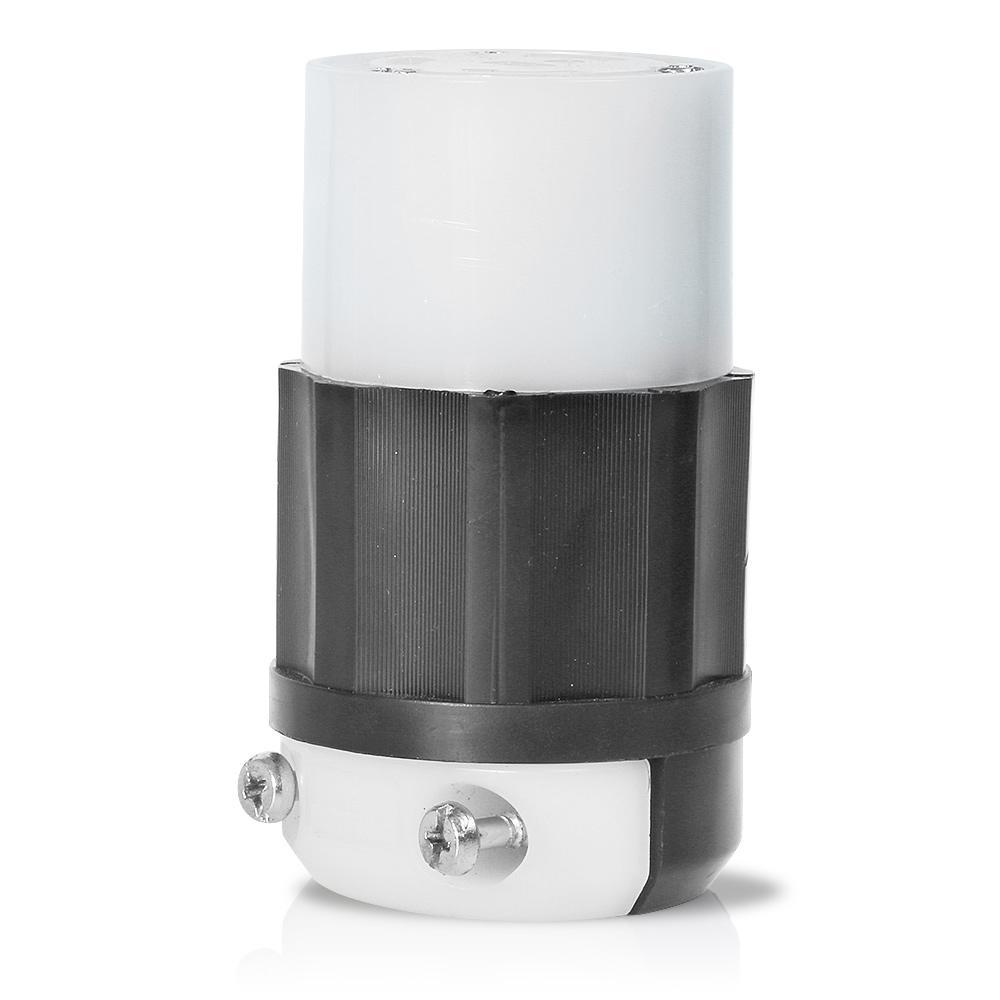

Leviton® 2753 3-Phase Non-Grounding Cable Mount Locking Connector, 120/208 V AC, 30 A, 4 Poles, 4 Wires, Black/White
Leviton® Dustguard® line of industrial grade plugs and connectors feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid 1-piece construction for superior conductivity. They are engineered to IP44 splashproof and dust tight standards. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477808481
-
Manufacturer Part Number2753
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
Type3-Phase Non-Grounding Cable Mount
-
GradeIndustrial
-
NEMA RatingNEMA L18-30R
-
Voltage Rating120/208 V AC
-
Cord Diameter0.595 to 1.15 in
-
Amperage Rating30 A
-
Horsepower3-1/2 hp
-
Number of Poles4
-
Dimensions2.22 in Dia x 3.78 in L
-
Number of Wires4
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 792TA8 |
-
Alternative Part Number7331922
-
UNSPSC39121402
-
IDEA Index ID7331922
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
Specification Sheet
-
Instruction/Installation Manual
