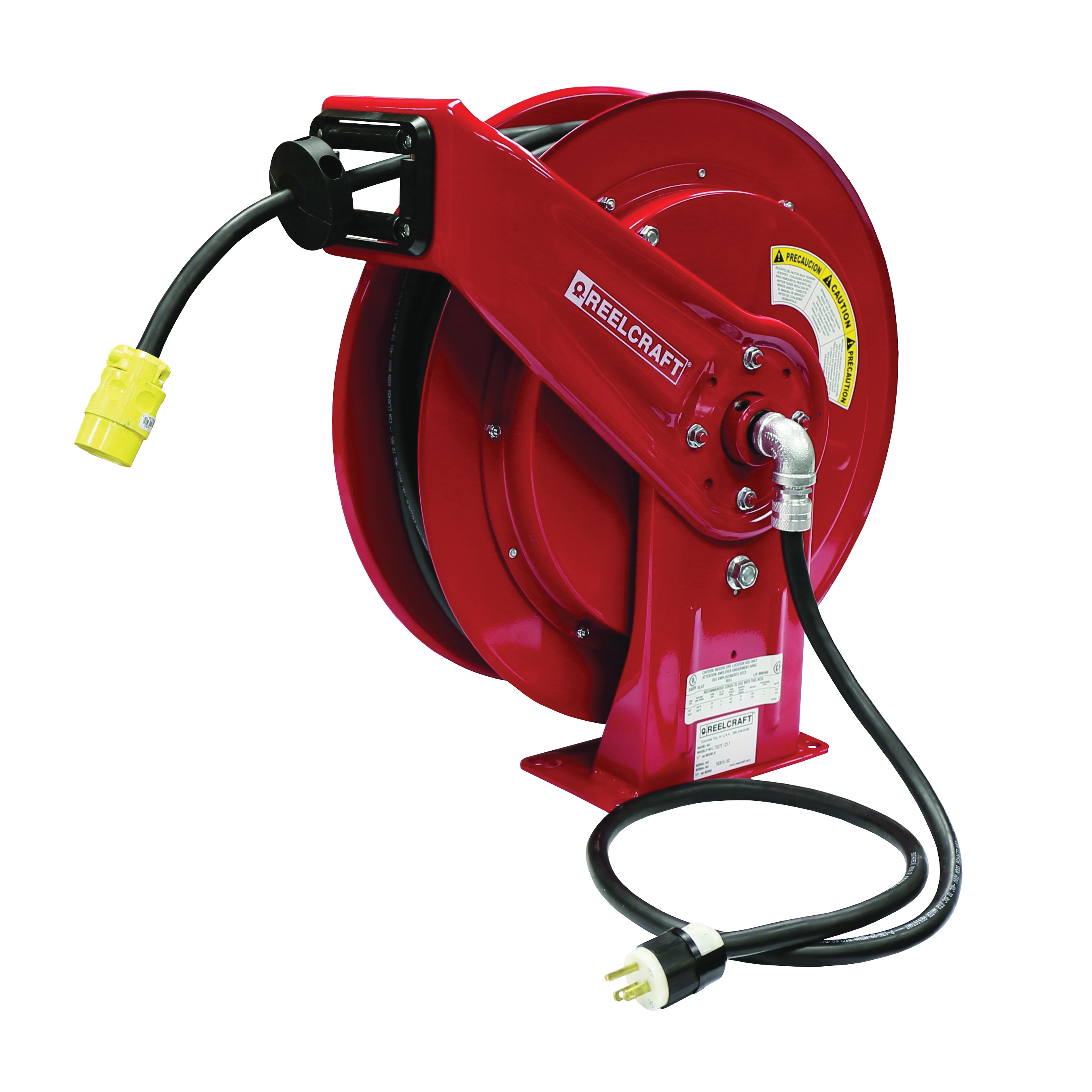

Reelcraft 100-FOOT 15-A EXTENSION CORD REELS REC L-70100-123-3
Reelcraft's series L 70000 cord reels incorporate a heavy duty base design, all steel construction and a baked on powder coat finish to produce a rugged, corrosion-resistant product. A newly redesigned latching mechanism provides longer service life of the latch components. The containerized drive spring offers safer and easier handling during maintenance. Two sealed ball bearings produce a smoother spool rotation and easier operation. The guide arm adjusts to seven positions for various mounting locations and applications.
-
BrandReelcraft®
-
UPC699567018100
-
Manufacturer Part NumberL 70100 123 3
-
CountryUSA
-
Temperature Rating0 to 125 deg F
-
MaterialSteel
-
Receptacle TypeNEMA 5-15R
-
Reel MaterialSteel
-
Reel Mounting TypeBench/Ceiling/Floor/Wall
-
ColorRed
-
TypeSpring Retractable
-
GradeHeavy Industrial
-
Conductor Size12 AWG
-
Voltage Rating125 V AC
-
Cord ColorBlack
-
Cord Length100 ft
-
Amperage Rating15 A
-
SeriesL 70000
-
Number of Outlets1
-
Dimensions20-1/4 in H x 19-3/4 in W x 11-3/4 in D
- Compact design - reels are 25% smaller than our heavy duty series 80000 reels
- Guide rollers - the one piece design and stainless steel pins offer greater strength and easier serviceability
- All steel electrical enclosure - offers a stronger, more durable protective cover of electrical components
-
UNSPSC26121635
-
Standards/ApprovalsUL Listed|CSA Certified|PROP65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
Catalog
-
Instruction/Installation Manual
