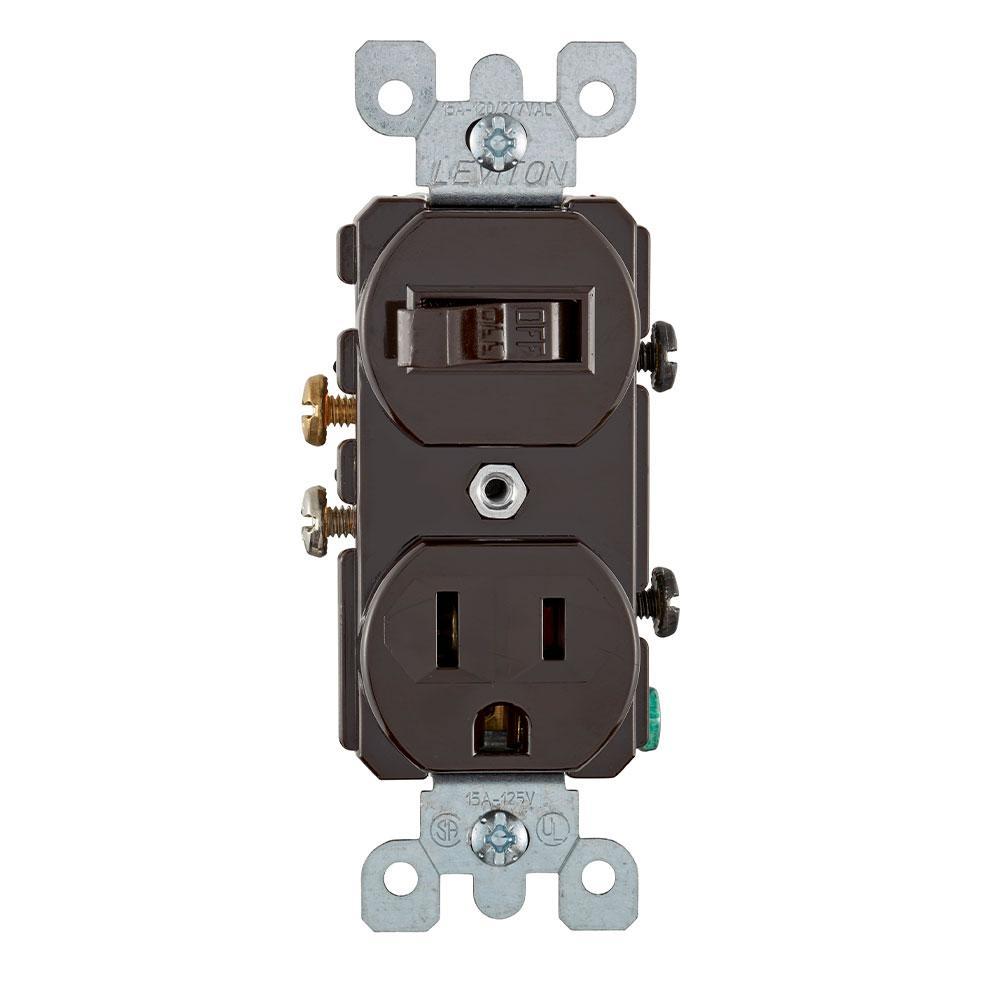

Leviton® 5225 Duplex Combination Switch and Receptacle, 15 A, 120/277 VAC, 1/2 hp at 120 VAC, 2 hp at 240/277 VAC, 1 Poles, 14 to 12 AWG Wire
With Leviton® extensive assortment of combination devices, you can fill a 1-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited 2-years warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
-
BrandLeviton®
-
UPC078477226506
-
Manufacturer Part Number5225
-
CountryUSA
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorIvory
-
TypeDuplex
-
GradeCommercial
-
Grounding StyleGrounded
-
MountingSurface/Wall Plate
-
Wire Size14 to 12 AWG
-
Number of Poles1
-
Dielectric StrengthWithstands 1.5 kV for 1 min
-
Dimensions4.2 in H x 1.62 in W x 16 in D
-
Electrical Ratings15 A, 120/277 VAC, 1/2 hp at 120 VAC, 2 hp at 240/277 VAC
-
EnclosureNEMA 5-15R
- 1/2 hp at 120 VAC power rating
- 12 to 14 in-lb torque
- Maximum 30 deg C rise
- -40 to 120 deg C temperature rating
- Steel strap and thermoplastic toggle actuator
- 15 A, 120 VAC switch, 125 VAC receptacle electrical rating
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1A182 |
-
Alternative Part Number7365325
-
UNSPSC39122231
-
IDEA Index ID7365325
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 No. 111 File No. 152105/LR3413|NOM 057|NEMA WD-1/WD-6|UL94 V-2 Flammability Rating|UL File No. E7458/20
-
Warranty10 Years Limited
-
Specification Sheet
