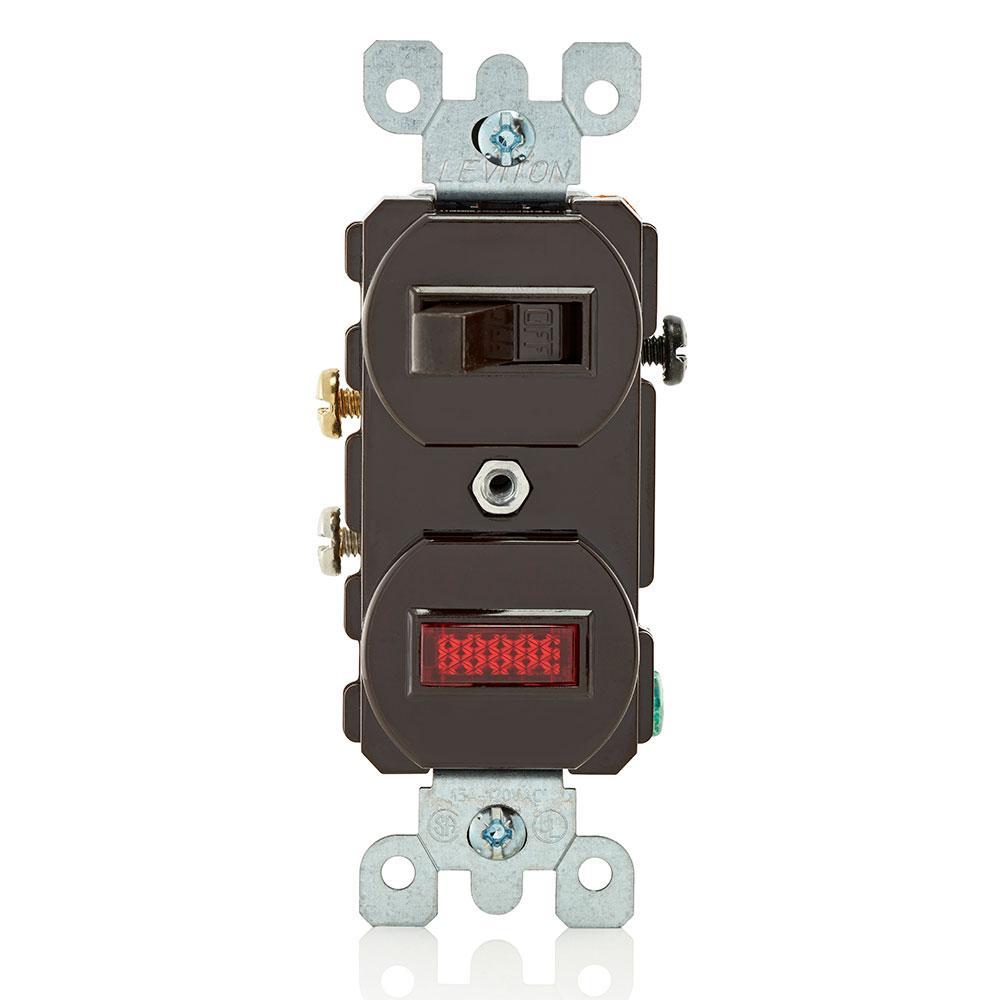

Leviton® 5226 Duplex Grounding AC Combination Switch, 120/125 V AC, 15 A
With Leviton® extensive assortment of combination devices, you can fill a 1-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited 2-years warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
-
BrandLeviton®
-
UPC078477226803
-
Manufacturer Part Number5226
-
CountryUSA
-
Temperature Rating-40 to 120 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBrown
-
TypeDuplex Grounding
-
MountingSurface
-
ActionToggle
-
Voltage Rating120/125 V AC
-
Amperage Rating15 A
-
Number of Poles1
-
Dimensions4.2 in H x 1.62 in W x 16 in D
-
Lamp TypeNeon Pilot
-
EnclosureNEMA 5-15R
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Fits standard wallboxes
- Break-OFF tabs on devices with switches permit conversion to separate feeds
-
Alternative Part Number5226-SP|7365340
-
UNSPSC39122231
-
IDEA Index ID7365340
-
Package DescriptionEACH
-
Standards/ApprovalsUL 20/E7458|NOM Certified|NEMA WD1/WD6|ANSI C73|CSA C22.2 No.111/152105/LR3413|UL94 V-2 Flammability Rating
-
Warranty2 Years
-
