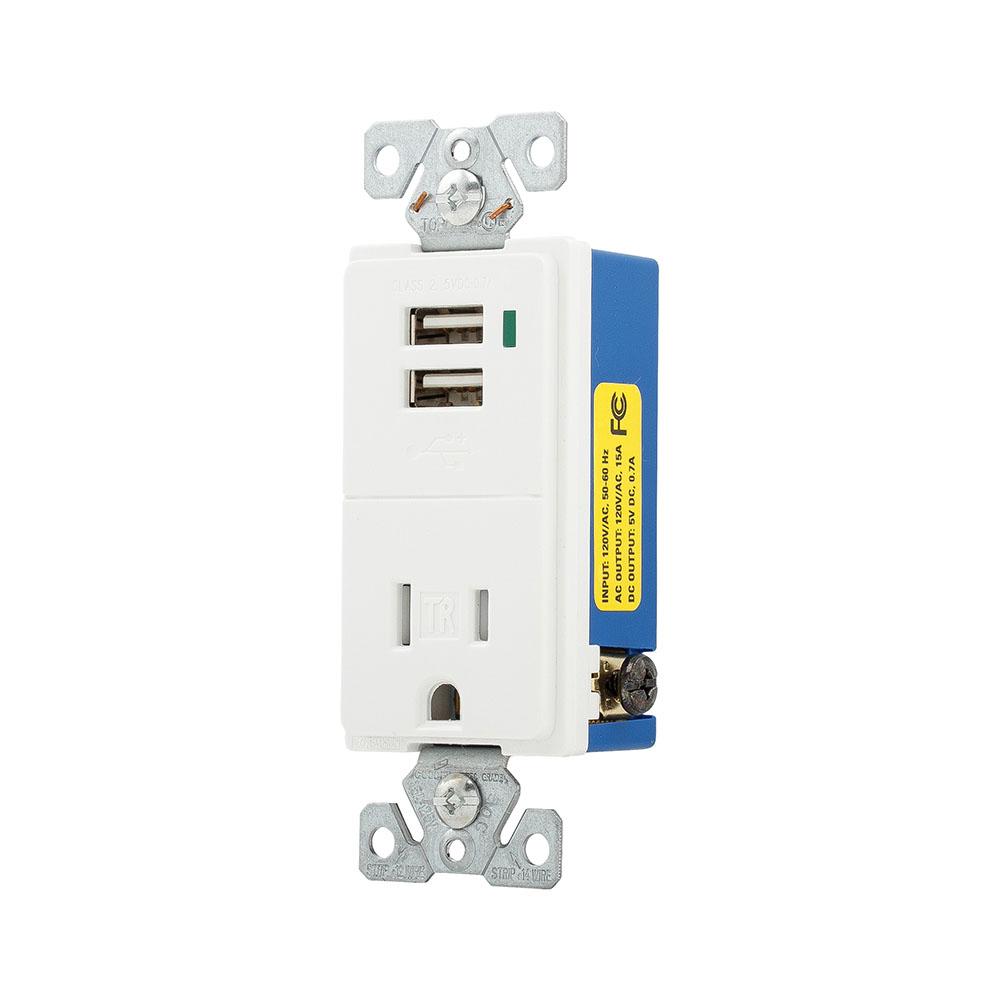

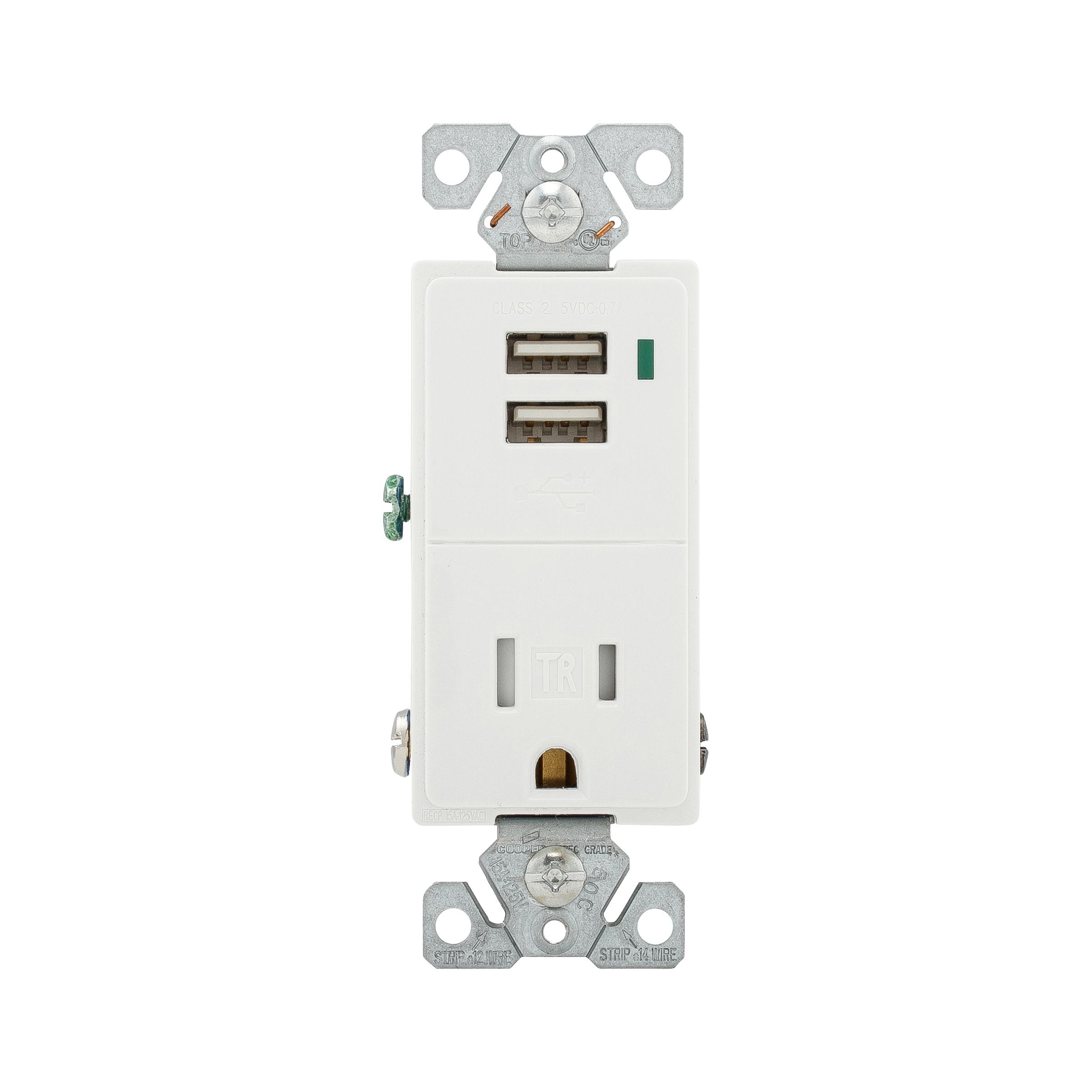

EATON Arrow Hart® TR7740W-K Tamper Resistant Combo USB Charger and Duplex Receptacle, 2 Poles, 3 Wires, White
EATON Arrow Hart® TR7740W-K Tamper Resistant Combo USB Charger and Duplex Receptacle, 2 Poles, 3 Wires, White
-
BrandEATON
-
UPC032664729294
-
Manufacturer Part NumberTR7740W-K
-
CountryUSA
-
MaterialThermoplastic
-
ColorWhite
-
TypeTamper Resistant
-
GradeStandard
-
ConnectionScrew
-
MountingFlush
-
Wire Size14 to 12 AWG
-
Number of Poles2
-
Size4.19 in H x 1.3 in W x 1.07 in D
-
Number of Wires3
-
Environmental ConditionsIndoor Use Only
- Standard AC receptacle with two USB charging ports for conveniently charging most electronic components
- Dual USB charging ports charge most compatible electronic devices that charge via a 5 VDC power adapter
- Tamper resistant receptacles provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 VAC receptacles installed in dwelling units must be tamper resistant
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
- Steel mounting strap is zinc plated for added corrosion resistance
- Convenient patented built-in wire stripper speeds installation
- Backwire clamps on side terminals provide for easy installation of 12 and 14 AWG wire
- Triple wipe blade contacts and double wipe ground contacts to insure long term plug retention
- Replaces a standard duplex receptacle
- Uses a decorator style wallplate
- NEMA 5-15R rated
| Cross-Reference Number |
|---|
| 500212 |
-
Alternative Part Number13161983
-
UNSPSC39121406
-
IDEA Index ID13161983
-
Standards/ApprovalsUL 498/1310|cULus Listed|NOM Certified
-
Specification Sheet
