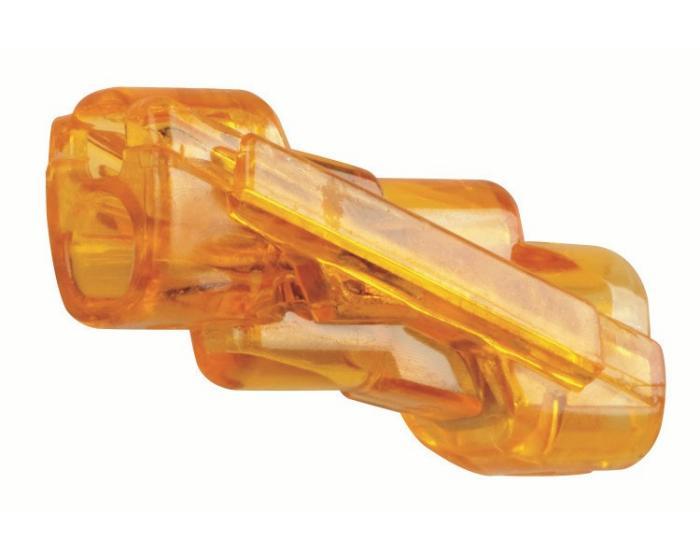

IDEAL ORANGE IN-LINE WIRE CONNECTORS IDL 30-1342-S
A faster alternative to the butt splice.The SpliceLine In-Line Wire Connector is a revolutionary in-line wire connector that utilizes patented push-in technology in a unique design to provide a crimp-free, solderless butt splice faster and easier. The 2-port model supports a wide range of either stranded or solid wires, allowing one connector to cover the same range as three traditional butt splices and installs two times faster than a traditional butt splice.The end-to-end connection of SpliceLine is a great solution for today’s pre-fab operations and also makes it perfect for lengthening short wires in tight spaces. It easily passes through ½ inch knockouts and the transparent polycarbonate housing allows for visual inspection, assuring a secure connection every time.
-
BrandIDEAL®
-
UPC783250739929
-
Manufacturer Part Number30-1342S
-
CountryUSA
-
Temperature Rating105 deg C
-
MaterialPolycarbonate
-
ColorOrange
-
Voltage Rating600 V AC
-
Series42 Series
-
Wire Size20 to 12 AWG, 16 to 12 AWG
-
Wire TypeSolid/Stranded
-
Shell StylePositive Grip
-
Dimensions0.41 in Dia x 1 in L x 0.57 in W
-
Specifications20 A Current, 18 to 14 AWG Tin Bonded
- The SpliceLine In-Line Wire Connector is a revolutionary in-line wire connector that utilizes patented push-in technology in a unique design to provide a crimp-free, solderless butt splice faster and easier
- The 2-port model supports a wide range of either stranded or solid wires, allowing one connector to cover the same range as three traditional butt splices and installs two times faster than a traditional butt splice
- Approved for bonding and grounding applications
- The SpliceLine In-Line Wire Connector is a revolutionary in-line wire connector that utilizes patented push-in technology in a unique design to provide a crimp-free, solderless butt splice faster and easier
- The 2-port model supports a wide range of either stranded or solid wires, allowing one connector to cover the same range as three traditional butt splices and installs two times faster than a traditional butt splice
-
Alternative Part Number12361329
-
UNSPSC39121409
-
IDEA Index ID12361329
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|CSA C22.2 No. 188|RoHS Compliant|UL 486C|UL 467
-
Warranty Information
