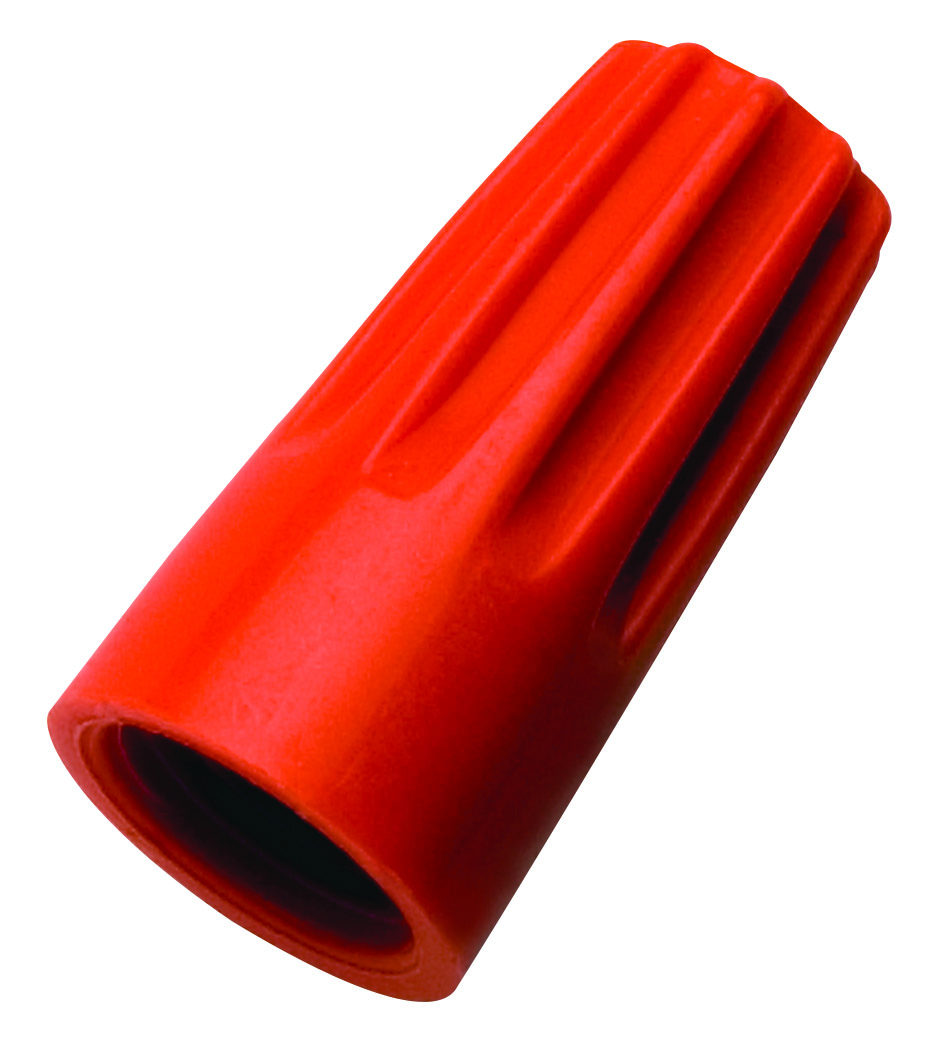

IDEAL 22/14-AWG ORANGE WIRE NUTS--BG/100 IDL 30-073
The IDEAL Wire-Nut Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928. As the first screw-on wire connector in America, it literally set the industry standard for years to come.With a fixed, square-wire spring and a positive grip shell, the Wire-Nut is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.With five color-coded models available, Wire-Nut Wire Connectors will handle any job from as small as #22 gauge wire up to #6 gauge wire.Additionally, Models 71B, 72B, and 73B, in both color or black high-temp, are the only twist-on wire connectors rated for use in Air Handling Spaces. These connectors can be used on Class 2 or low-voltage connections inside plenums, ducts, and other environmental air handling spaces without the need for a box.
-
BrandIDEAL®
-
UPC783250300730
-
Manufacturer Part Number30-073
-
CountryUSA
-
Temperature Rating221 deg F
-
FinishZinc Plated
-
MaterialPolypropylene
-
ColorOrange
-
TypeFlame-Retardant
-
Voltage Rating600 V AC
-
Series73B®
-
Wire Size22 to 14 AWG
-
Wire TypeSolid/Stranded Copper
-
Shell StylePositive Grip
-
Dimensions7/16 in W x 55/64 in H
-
Specifications3/8 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, 18 to 1 AWG with 20 to 2 AWG Minimum, 14 to 2 AWG Maximum Conductor Combination Size
-
Spring TypeFixed/Square Wire
- The IDEAL Wire-Nut Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928
- With a fixed, square-wire spring and a positive grip shell, the Wire-Nut is perfect to twist-on with fingers for a secure connection that will last
- The Wire-Nut also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition
- With five color-coded models available, Wire-Nut Wire Connectors will handle any job from as small as 22 ga wire up to 6 ga wire
- Approved for bonding and grounding applications
- High temperature models designed to withstand the extreme heat build-up found in high wattage light fixtures and signs
- Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
- Reusable for easy circuit changes and additions
- Positive grip shell that is comfortable to twist-on with fingers
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 6YH36 |
-
Alternative Part Number8315823
-
UNSPSC39121445
-
IDEA Index ID8315823
-
Standards/ApprovalsCSA C22.2 No. 188|Federal Specification W-S-610E|RoHS Compliant|UL 486C|UL94 V-2 Flammability Rating
-
Package DescriptionEACH
-
Warranty12 Months
-
