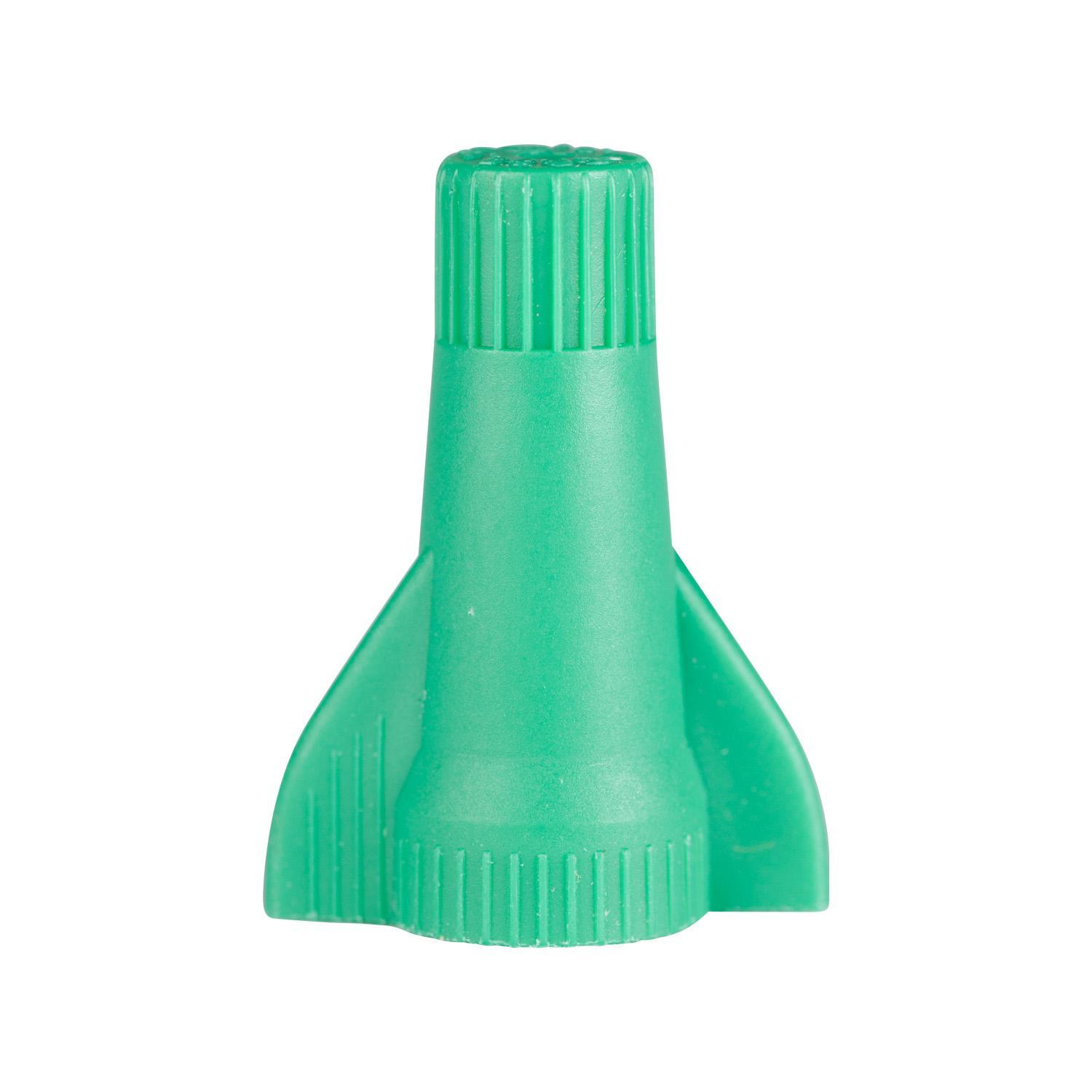

Gardner Bender 10-095 95 Series Twist-On Wire Connector, Winged Shell, Live Action Spring, 14 to 10 AWG Wire Aluminum/Copper Wire, Thermoplastic Shell
Specifically designed for making positive ground connections with a hole in the tip of the connector to feed ground wire through. GreenGard connectors feature the same live-action as GB WingGuard connectors with knurled wings for a sure grip and greater twisting leverage/torque. In addition GreenGard connectors offer added plating protection for corrosion resistance in grounding applications. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires.
-
BrandGardner Bender
-
UPC032076100957
-
Manufacturer Part Number10-095
-
CountryUSA|Canada
-
Temperature Rating221 deg F
-
FinishZinc Plated
-
MaterialThermoplastic Shell
-
ColorGreen
-
Voltage Rating600 V AC
-
Series95 Series
-
Wire Size14 to 10 AWG
-
Wire TypeAluminum/Copper
-
Shell StyleWinged
-
Dimensions0.4375 in ID x 1.25 in OD x 0.91 in L
-
Specifications9/32 in Top Dia
-
Spring TypeLive Action
- UV-resistant plastic saddle cradles and protects cable insulation
- Square wire spring ensures a secure connection that resists corrosion
- Specifically designed for making positive ground connections with a hole in the tip of the connector to feed ground wire through
- (2) 14 AWG - (4) 12 AWG wire combinations
- 100/Box
- Easier to use new design enables torque-up with improved grip
- Contoured, offset wings enable firm ground connections
- Connectors include hole in the tip for ground wire insertion
- Solid copper to copper connections only
- Connectors with knurled wings for a sure grip and greater twisting leverage/torque
- Thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires with zinc-plated nail, spring resists rust and corrosion
- Designed for use with #2 SER service entrance cables
- Nail heads recess into the strap when fully driven into wood to eliminate snags
| Cross-Reference Number |
|---|
| 513180 |
-
UNSPSC39121445
-
Standards/ApprovalscULus Certified|RoHS Compliant|cULus Listed
-
Warranty1 Year
-
Specification Sheet
