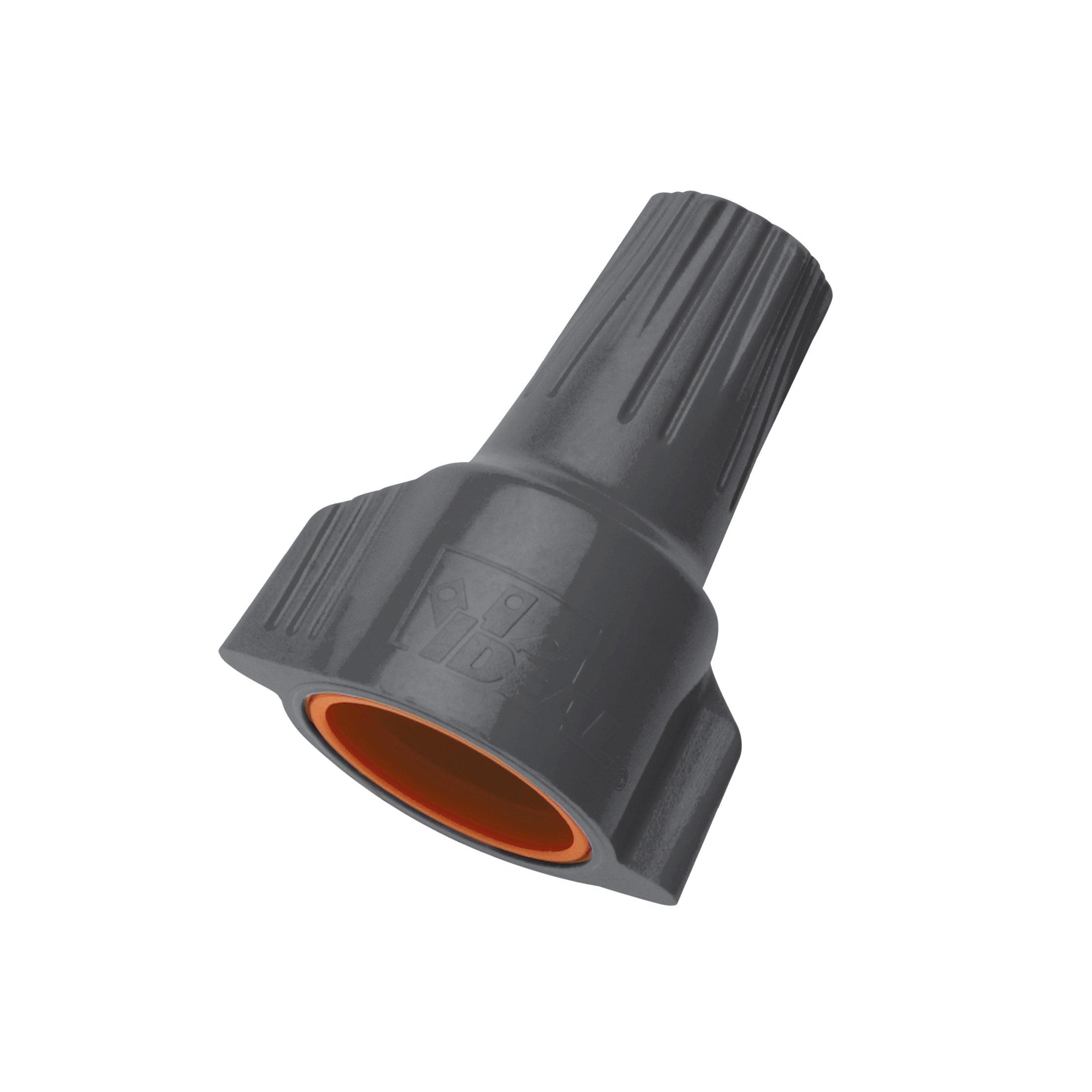

IDEAL® WEATHERPROOF® 30-1161 61® Series Wire Connector, Winged Shell, Live Action/Square Wire Spring, 22 to 14 AWG Solid/Stranded Copper Wire, Thermoplastic Polyester
100% Silicone-based sealant protects against moisture and corrosionUL Listed to 486G Sealed Twist-On Wire Connector for use in damp/wet locations or above-grade applicationsEasy to apply, pre-filled twist-on wire connectorsSwept wing design is built for comfort and efficiencyEliminates the need for heat-shrink or excessive tapingTough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)Models 61 and 63 approved for bonding and grounding applicationsFor use in damp/wet location or above-grade applicationsConnected and protected.Designed specifically for above-grade, interior or exterior connections exposed to damp, wet or corrosive environments, WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements. The swept-wing design makes the connector easy and comfortable to apply, while the pre-filled, silicone-based sealant protects against moisture and corrosion, eliminating the need for heat-shrink or excessive taping.WeatherProof Wire Connectors feature tough, flame-retardant shells that withstand most rugged environmental extremes and are listed to UL 486D for use in damp or wet locations that are above ground.Due to the pre-filled silicone sealant, WeatherProof Wire Connectors are designed as a one-use only connection.Not for use in continual submersion applications.
-
BrandIDEAL®
-
UPC783250758142
-
Manufacturer Part Number30-1161
-
CountryUSA
-
Temperature Rating105 deg C
-
MaterialThermoplastic Polyester
-
ColorGray
-
Voltage Rating600 VAC
-
Series61® Series
-
Wire Size22 to 14 AWG
-
Wire TypeSolid/Stranded Copper
-
Shell StyleWinged
-
Dimensions0.49 in Dia x 0.65625 in W x 0.90625 in H
-
Specifications3/8 in Wire Strip, (2) 20 AWG Minimum, (2) 14 AWG Maximum Conductor Combination Size
-
Spring TypeLive Action/Square Wire
- 100% silicone based sealant protects against moisture and corrosion
- UL listed to 486D for use in damp/wet locations or direct burial/below grade applications
- Easy to apply, pre-filled twist-on wire connectors
- Swept wing design is built for comfort and efficiency
- Eliminates the need for heat shrink or excessive taping
- Sealed Twist-On Wire Connector for use in damp/wet locations or above-grade applications
- Tough, UL 94V-2 flame-retardant shell rated at 105 deg C (221 deg F)Models 61 and 63 approved for bonding and grounding applications

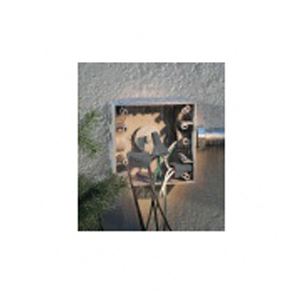

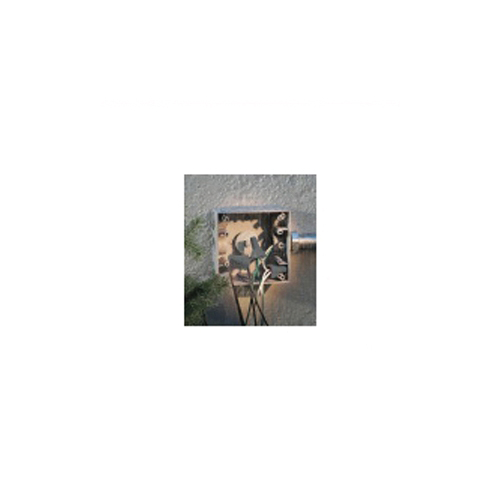

- Designed specifically for above-grade, interior or exterior connections exposed to damp, wet or corrosive environments, WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements
-
Alternative Part Number12092570
-
UNSPSC39121445
-
IDEA Index ID12092570
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|CE Marking|CSA Certified|RoHS Compliant|UL 486C/486D|UL 94 V-2 Flammability Rated
-
RoHS
