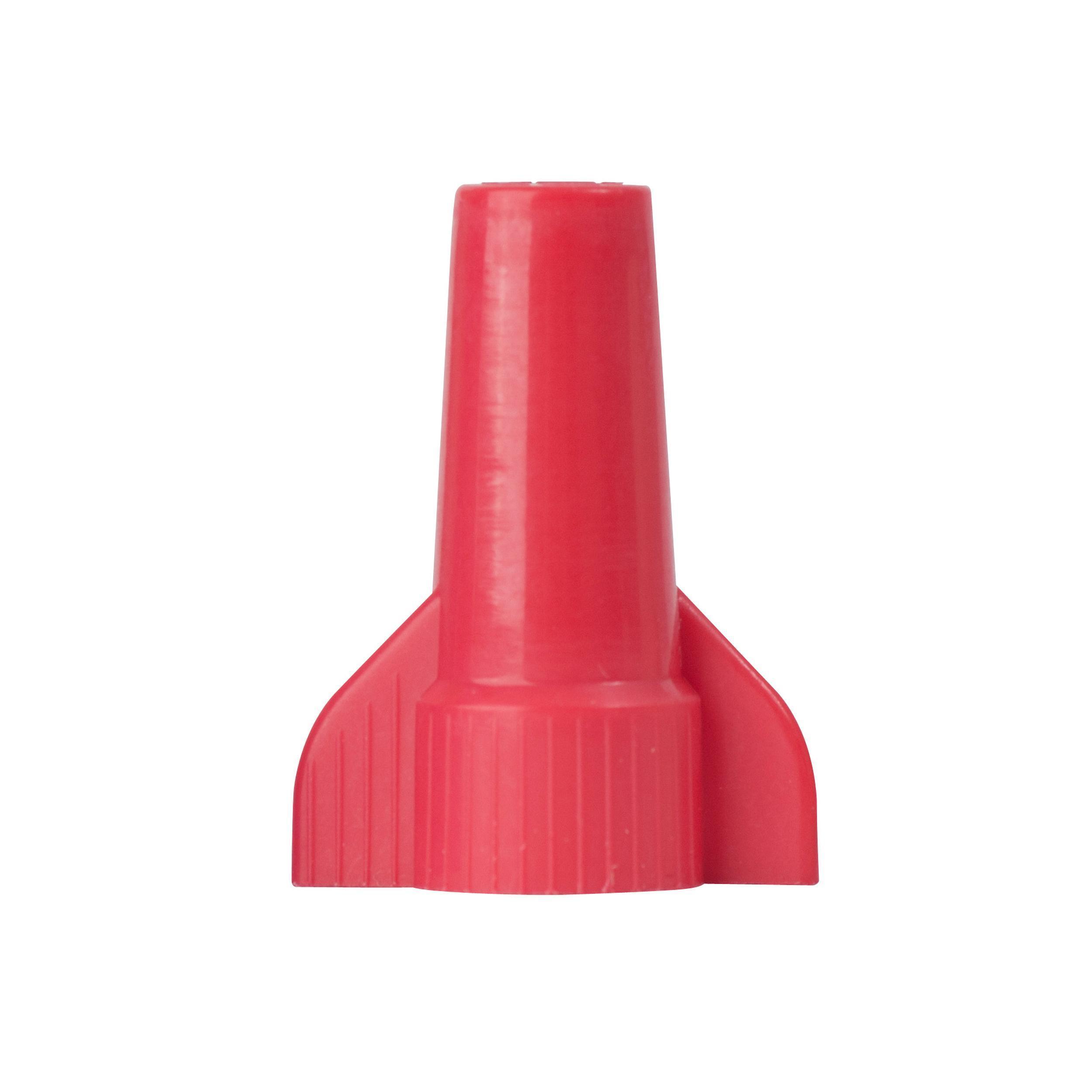

Gardner Bender 10-086 86 Series High Leverage Twist-On Wire Connector, Winged Shell, Square Spring, 22 to 6 AWG Wire Aluminum/Copper Wire, Thermoplastic Shell

0 Ratings
$17.33
In Stock
SKU: JWH509531
GTIN (EAN,ISBN): 00032076100865
noimage_new

GB's WingGard twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that onesize can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.

In Stock
HCI of Jackson: 6
HCI of Dyersburg: 3
HCI of Humboldt: 3
HCI of Union City: 1
HCI of Gallatin: 1
My Wishlist
Compare
Main specs
  • Brand
    Gardner Bender
  • UPC
    032076100865
  • Manufacturer Part Number
    10-086
  • Country
    USA|Canada
Specification
  • Temperature Rating
    105 deg C
  • Finish
    Zinc Plated
  • Material
    Thermoplastic Shell
  • Color
    Red
  • Type
    High Leverage
  • Voltage Rating
    300/600 V AC
  • Series
    86 Series
  • Wire Size
    22 to 6 AWG
  • Wire Type
    Aluminum/Copper
  • Shell Style
    Winged
  • Dimensions
    0.4375 in ID x 0.91 in OD x 1.25 in L
  • Specifications
    9/32 in Top Dia
  • Spring Type
    Square
Features
  • Wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design
  • 100/Box
  • Wiring Connectors
  • Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
  • Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
  • High dielectric shell features deep skirt design to prevent exposure of bare wire
  • Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
  • Copper to copper connections only
  • Thermoplastic shell provides strength and resistance to chemicals and high temperature with zinc plated spring
  • Square-wire plated spring instantly adjusts to the shape and size of the splice, secure connections for positive continuity
  • (2) 20 AWG - (4) 10 AWG wire combinations
Competitor Information
Competitor Name Competitor Part Number
Grainger 50HX58
Additional Information
  • UNSPSC
    39121445
  • Standards/Approvals
    cULus Certified|RoHS Compliant|cULus Listed
  • Warranty
    1 Year
Attachments
Reviews

There are yet no reviews for this product.
