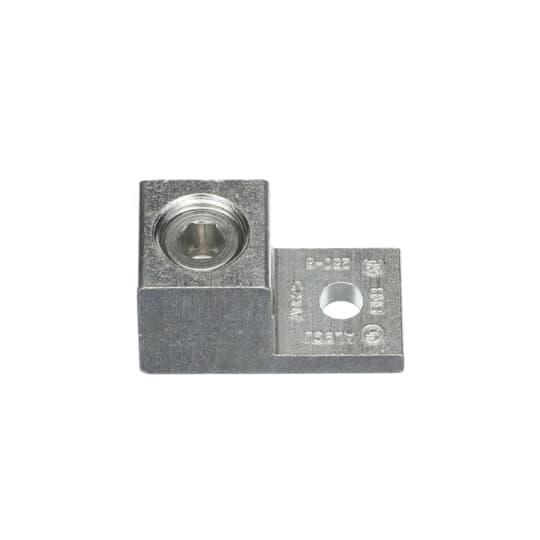

Blackburn® ADR25 Type ADR-ALCUL Dual-Rated Mechanical Lugs, 6 AWG to 250 kcmil Conductor Aluminum/Stranded Copper Conductor, 5/16 in Stud, 1 Bolt Holes
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
-
BrandBlackburn®
-
UPC783786610105
-
Manufacturer Part NumberADR25
-
CountryUSA
-
FinishTin Plated
-
MaterialAluminum
-
TypeType ADR-ALCUL Dual-Rated
-
Conductor Size6 AWG to 250 kcmil
-
Conductor TypeAluminum/Stranded Copper
-
Voltage Rating600 V AC
-
Number of Bolt Holes1
-
Dimensions2 in L x 1 in W x 1-1/8 in H
-
Specifications1-Conductor, Socket Screw
-
Stud Size5/16 in
- Tin plated for low contact resistance
- Easy installation - no special tools required
- 5/16 in socket screw on sizes 250 through 350 kcmil
- 1 stud of 5/16 in
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 3LN37 |
-
Alternative Part Number10768438|7TAH006600R0207
-
UNSPSC39121408
-
IDEA Index ID10768438
-
Package DescriptionEACH
-
Standards/ApprovalsUL E9809 / UL E9809
-
Specification Sheet
-
Instruction/Installation Manual
