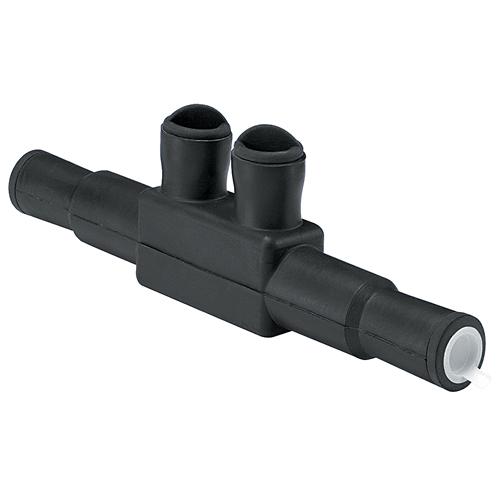

ILSCO® SafetySub® USPA-350SS-DB Type USPA-SS Dual Rated In-Line Waterproof Splice, 10 AWG to 350 kcmil Aluminum/Copper Conductor, Aluminum

0 Ratings
$77.67
In Stock
SKU: ILSUSPA350SSDB
GTIN (EAN,ISBN): 00783669941104
noimage_new

ILSCO® SafetySub® USPA-350SS-DB Type USPA-SS Dual Rated In-Line Waterproof Splice, 10 AWG to 350 kcmil Aluminum/Copper Conductor, Aluminum

In Stock
HCI of Jackson: 44
HCI of Dyersburg: 0
HCI of Humboldt: 9
HCI of Union City: 10
HCI of Gallatin: 2
My Wishlist
Compare
Main specs
  • Brand
    ILSCO®
  • UPC
    783669941104
  • Manufacturer Part Number
    USPA-350SS-DB
  • Country
    USA
Specification
  • Temperature Rating
    90 deg C
  • Finish
    Electro-Plated Tin
  • Material
    Aluminum
  • Type
    Type USPA-SS Dual Rated
  • Conductor Size
    10 AWG to 350 kcmil
  • Conductor Type
    Aluminum/Copper
  • Voltage Rating
    600 V AC
  • Dimensions
    7 in L
  • Specifications
    350 in-lb Torque, 5/16 in Hex
Features
  • Encapsulated in EPDM rubber with a nominal thickness of 125 mil and a dielectric strength of 240 V/mil
  • Pre-marked end insert allows broad wire range
  • O-ring design screw cap inserts
  • Connector is produced from high strength 6061-T6 aluminum alloy
  • Range taking reduces inventory
  • Dual rated for aluminum and copper conductor
  • Connector has solid wire stop
  • Simply cut end inserts to appropriate marked wire size and insert conductor into connector
  • Ensures connector integrity while allowing ease of access to set screws, ensuring excellent sealing
  • Suitable for use with either copper or aluminum conductors
  • Ensures reliability
Additional Information
  • Alternative Part Number
    7781770
  • UNSPSC
    39121408
  • IDEA Index ID
    7781770
  • Package Description
    EACH
  • Standards/Approvals
    CSA LR-29601|UL 486D/88X4/E125087|ANSI 119.1/119.4|RUS Certified|PROP65: it is not known to contain any chemicals associated with this regulation
Attachments
Reviews

There are yet no reviews for this product.
