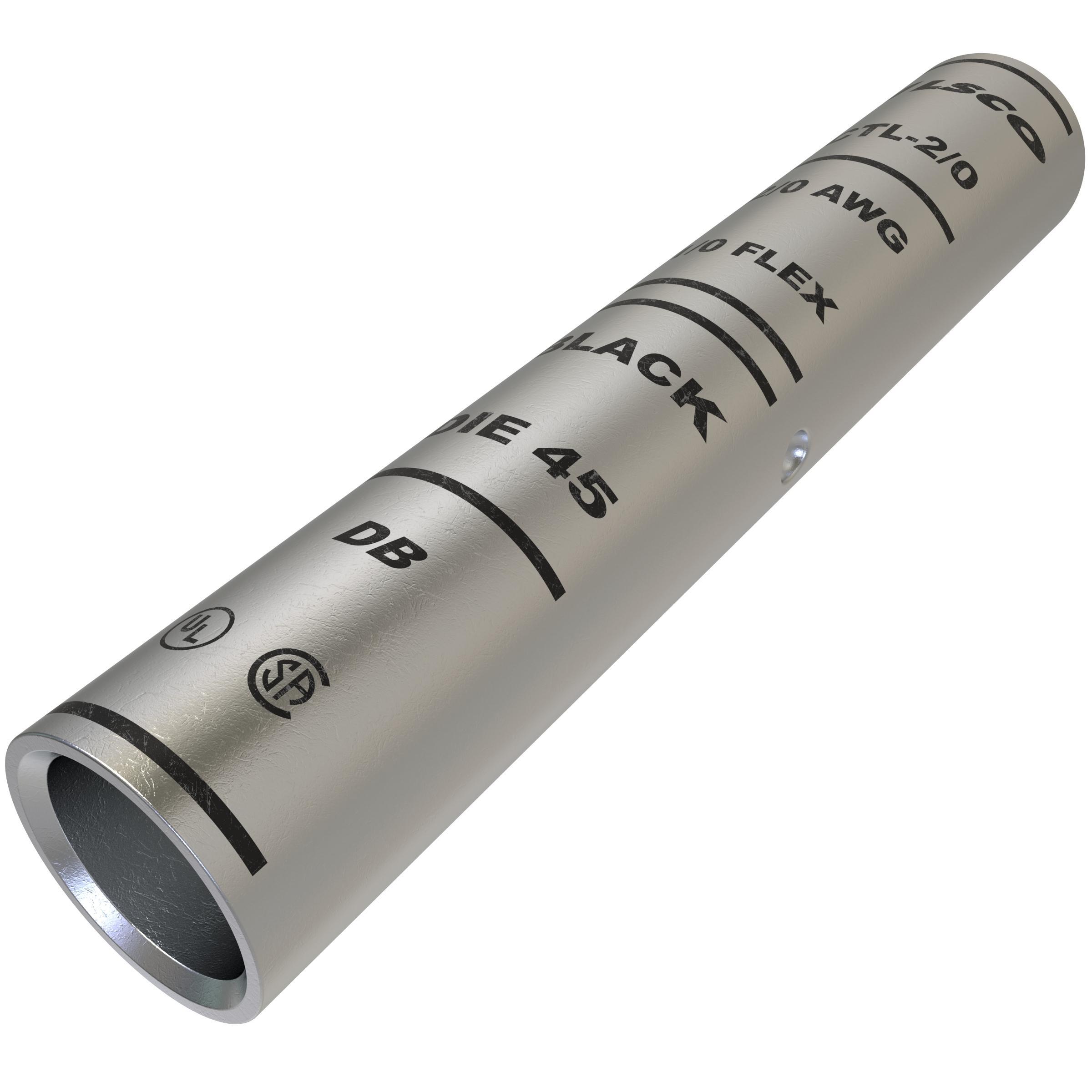

ILSCO® SureCrimp® CTL-2/0 CTL Long Barrel Compression Sleeve, 2/0 AWG Copper Conductor, Die Code: I-45, 3-1/8 in L, Copper
ILSCO® SureCrimp® CTL-2/0 CTL Long Barrel Compression Sleeve, 2/0 AWG Copper Conductor, Die Code: I-45, 3-1/8 in L, Copper
-
BrandILSCO®
-
UPC783669128055
-
Manufacturer Part NumberCTL-2/0
-
CountryUSA
-
Temperature Rating90 deg C
-
FinishElectro-Plated Tin
-
MaterialCopper
-
ColorBlack
-
TypeLong Barrel
-
Conductor Size2/0 AWG
-
Conductor TypeCopper
-
Voltage Rating600 V AC
-
SeriesCTL
-
Dimensions0.437 in ID x 0.562 in OD
-
Specifications1-5/8 in L Stripe
-
Length3-1/8 in
- Manufactured from high strength seamless copper tubing and electro-tin plated
- Long with chamfered barrel entry, center wire stop
- Proper high voltage spacing and insulation techniques must be used, for high voltage applications up to 35 kV
- For copper conductor only copper class B concentric/compressed, class C concentric strand configurations
- Listed with ILSCO® tools ILC-12, ILC-12H, ILCB-12, ILC-14, ILC-14H, ILC-15, MT-25, 94285, IDT-12, IDT-12H, ILC-10 and IDTB-12
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion and insures maximum cable insertion
- Color code identifies the proper compression die
- Expanded wire size with ILSCO® dieless tools and BURNDY® Y644M dieless tool
- Reduces inventory requirements
- 1/0 AWG flexible alternate conductor size
- 4 to 2/0 AWG expanded conductor size
- Insures maximum cable insertion
-
Alternative Part Number7765815
-
UNSPSC39121449
-
IDEA Index ID7765815
-
Package DescriptionEACH
-
Standards/ApprovalsCSA File No. LR29601|NEBS Level 3|UL 486A-BIUL 453G|UL 467 File No. E6207|ECCN EAR99|PROP65: Cancer -www.p65warnings.ca.gov
-
Specification Sheet
-
Specification Sheet
